Cannot choose HallEffectSensor

[DMeie.2]

I'm trying to set up a custom board based on the B-G431-ESC1, with the MC Workbench and the SDK Version 6.2.1.

My intention is to use sensorless for development and then have the option to switch to sensored (Hall, Encoder) in the future.

I set up the board accordingly in the Board Manager, here is the relating section of the config:

{
 "name": "SpeedAndPositionSensing",
 "type": "SpeedAndPositionSensing",
 "hwVariants": [
	{
	 "type": "HallEffectSensor",
	 "help": "SW 9 and 16 to consider",
	 "signals": {
		"HALLSENSOR_H1": [
		 {
			"name": "PB6",
			"help": "",
			"cost": 0
		 }
		],
		"HALLSENSOR_H2": [
		 {
			"name": "PB7",
			"help": "",
			"cost": 0
		 }
		],
		"HALLSENSOR_H3": [
		 {
			"name": "PB8-BOOT0",
			"help": "",
			"cost": 0
		 }
		]
	 }
	},
	{
	 "type": "QuadratureEncoderRelative",
	 "help": "SW 9 and 16 to consider",
	 "signals": {
		"QENC_A": [
		 {
			"name": "PB6",
			"help": "",
			"cost": 0
		 }
		],
		"QENC_B": [
		 {
			"name": "PB7",
			"help": "",
			"cost": 0
		 }
		]
	 }
	},
	{
	 "type": "QuadratureEncoderAbsolute",
	 "help": "SW 9 and 16 to consider",
	 "signals": {
		"QENC_A": [
		 {
			"name": "PB6",
			"help": "",
			"cost": 0
		 }
		],
		"QENC_B": [
		 {
			"name": "PB7",
			"help": "",
			"cost": 0
		 }
		],
		"QENC_Z": [
		 {
			"name": "PB8-BOOT0",
			"help": "",
			"cost": 0
		 }
		]
	 }
	}
 ]
}



However, inside the MC Workbench I can only choose between the two observer option.
None of the hall options show up, neither as the main nor the auxiliary sensor (in this context they're greyed out and cannot be chosen).
There is no message as to why this is the case either.

[cedric H]

Hello @DMeie.2,

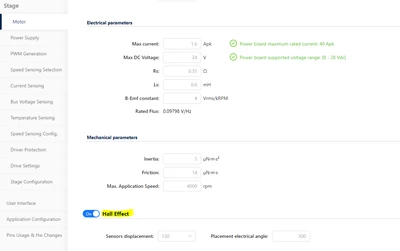

Are the hall sensors configured in the motor section ?

Regards

Cedric

[#iR]

Even after selecting hall sensor option in motor section, iam unable to select hall sensor option in speed control , can anyone help me .





Iam using nucleo f030r8 with custom motor driver and a hall sensor based motor

[userst]

Almost same situation here (stm32g491 with custom motor driver and quadrature encoder).
Did you find a solution for this?
I've double checked that the motor is correctly setup (encoder enabled) and that the board has the

QuadratureEncoder variant added in the config.

[DMeie.2]

Thanks, that worked!
So it depends on the motor configuration as well. Makes sense.
