DC-Motor Control Library for STM32 (VNH5019)

[DBaum.3]

Hello,

I would like to drive a simple DC motor with a STM32F446RE.

I use the VNH5019 as motor driver.

Everything works so far.

My only question now would be, is there a ready-to-use library or perhaps a way to embed the component into the software via STM32CubeMX?

Thank you very much

[Andrew Neil]

What, exactly, do you mean by "drive" here?

• simple on/off?
• speed control?
• other ... ?

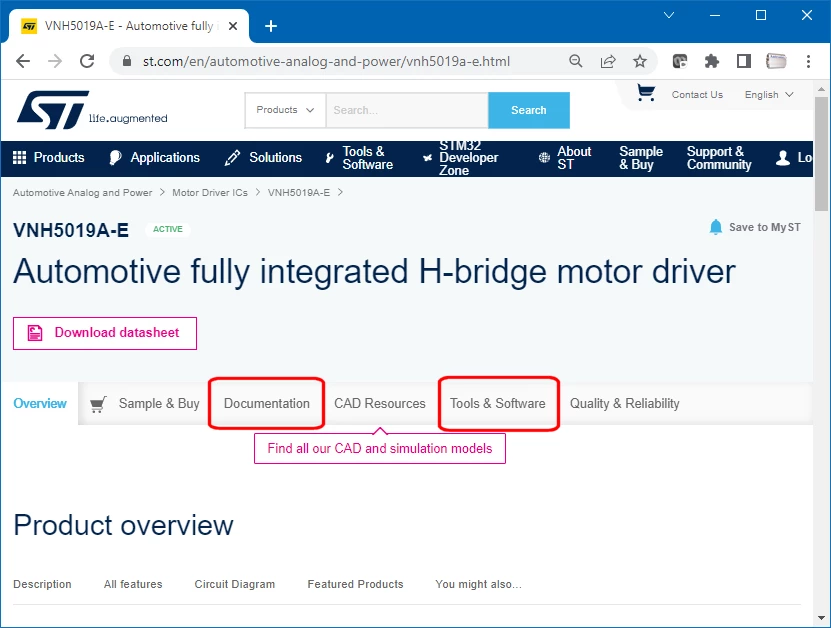

Have you looked on the Product Page for the VNH5019:



[DBaum.3]

Hello Andrew, first of all thanks for your answer.

To describe it in more detail:

There is an EVAL board (STEVAL-VNH5019A) for the driver, which can be operated/tested with a Windows program.

The program offers various functions:

- Basic motor control (direction, start/stop, brake)

- PWM control

- Diagnostics

- ...

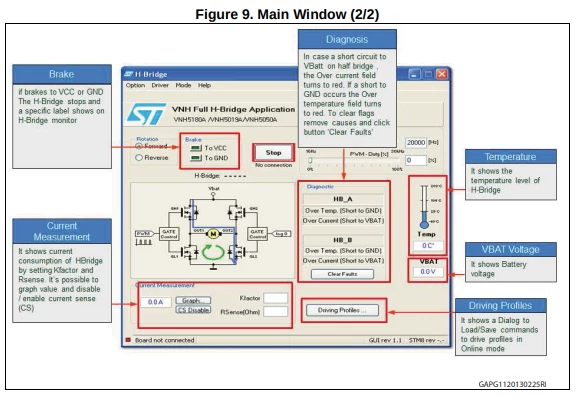

(see image)

I would now like to know if there is appropriate code or a library somewhere to do all of this on my processor
