Foc 3 Shunt Current Sensing Bug Report

[LahmYang]

MCSDK Version: 6.4.1 Build: 250722.224358



uint16_t R3_2_SetADCSampPointSectX_OVM(PWMC_Handle_t *pHdl)



Line 1246.



Should there be Tcase2?

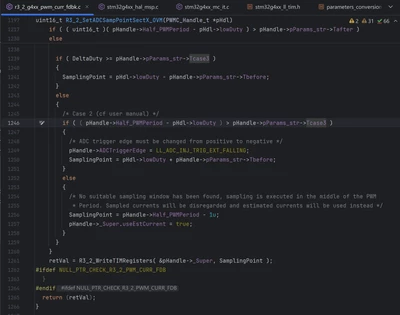

Tcase3 here is wrong, Tcase2 with no caller.

[GMA]

Hello @LahmYang,

Thank you for your report. The corrected firmware is as follows:

uint16_t R3_2_SetADCSampPointSectX_OVM(PWMC_Handle_t *pHdl)
{
 uint16_t retVal;
...
 /* In every sector there is always one phase with maximum complementary duty, one with minimum
 * complementary duty and one with variable complementary duty. In this case, phases with variable
 * complementary duty and with maximum duty are converted and the first will be always the phase
 * with variable complementary duty cycle */

 if ( DeltaDuty >= pHandle->pParams_str->Tcase3 )
 {
 SamplingPoint = pHdl->lowDuty - pHandle->pParams_str->Tbefore;
 }
 else
 {
 /* Case 2 (cf user manual) */
 if ( ( pHandle->Half_PWMPeriod - pHdl->lowDuty ) > pHandle->pParams_str->Tcase2 )
 {
 /* ADC trigger edge must be changed from positive to negative */
 pHandle->ADCTriggerEdge = LL_ADC_INJ_TRIG_EXT_FALLING;
 SamplingPoint = pHdl->lowDuty + pHandle->pParams_str->Tbefore;
 }

This issue will be reported to the dedicated team to address and correct it for future deliveries.
