How to run a motor using ST Motor Pilot 6.1.1

[JKong.3]

similar question as https://community.st.com/s/question/0D53W00001wHk5BSAS/motor-wont-start-with-motor-pilot

I am trying to run a BLDC motor using Motor Pilot 6.1.1 with B-G431B-ESC1.

Here's my process.

1. profile motor using motor profiler
2. generate code using mcworkbench 6.1.1 with the values obtained from the profiler
3. using CubeIDE, open generated project and click debug + play
4. open motor pilot -> Load UI -> MC_FOC_SDK.qml

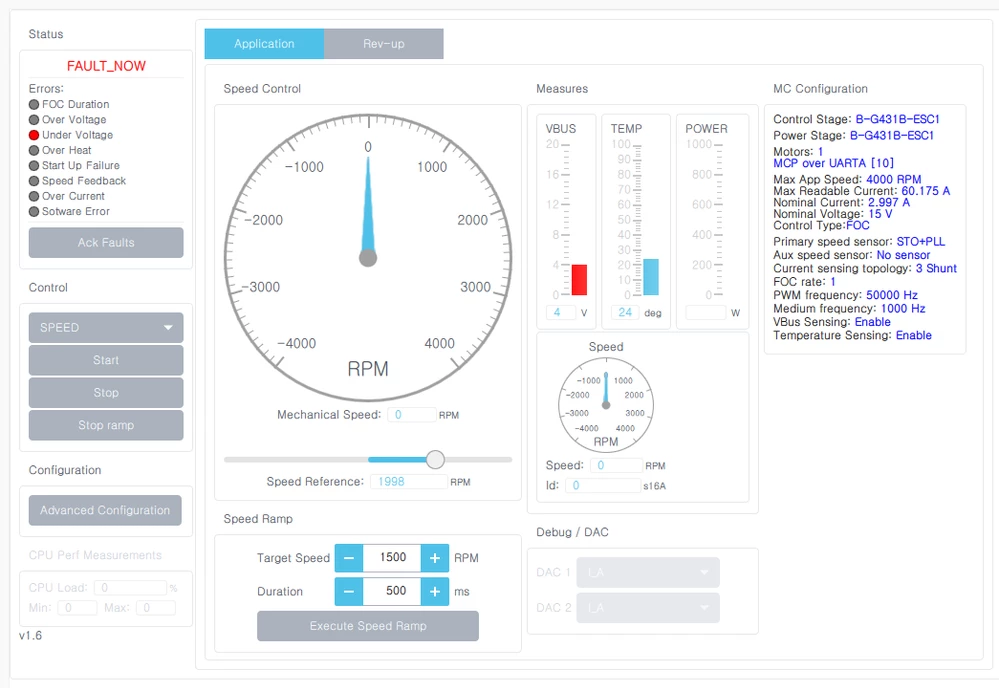

5. connect board (successful, image below)
6. connect power supply
7. set ramp target = 1500rpm, 500ms
8. set speed reference = 2000rpm
9. click start



when in IDLE mode, the motor is making a wierd knocking noise, at a rate of 1 sec.

and when I press start, the status change to START, the motor(or the board; I'm not sure) makes beep noise once(for about 0.5s) and the state returns to IDLE.

Please help. Thanks.

[JKong.3]

as it turns out my motor is broken. no need for an answer
