how to set p-nucleo-ihm001 to be Single shunt to active BR2804-1700kV.

[hchon.1]

follow the quick-start, i can set three shunt to active BR2804-1700kV.

but when i use single shunt, it always occured overload current.

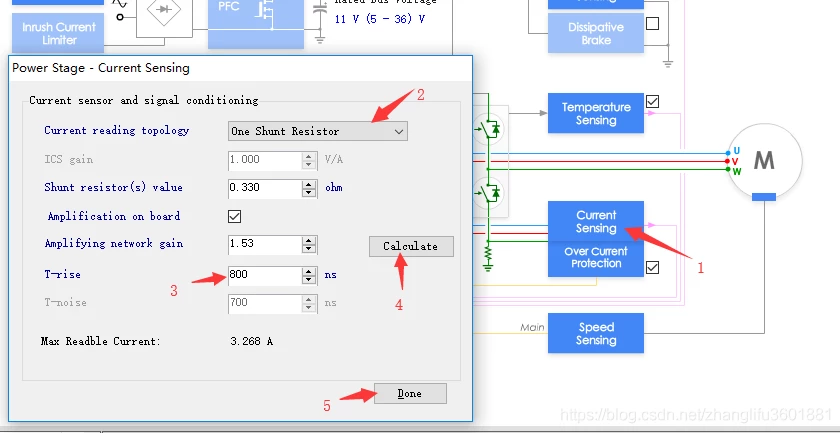

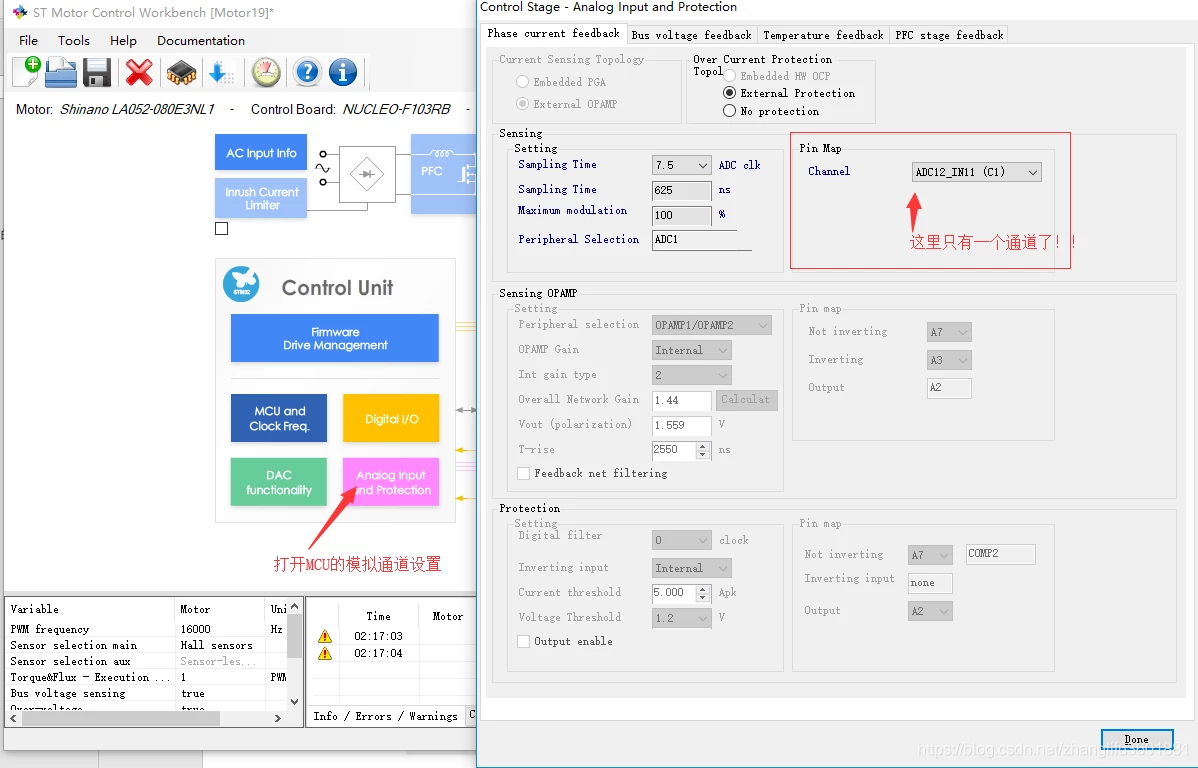

when i set single shunt, i set the settting as the appendix

[Gael A]

Hello hchin.1,

First of all, we would like to apologize for the delay in replying to your post.

If your point is still relevant, I would like to ask you if you have moved the jumper related to 1-Shunt configurations on the IHM07. They normally are set on 3-Shunt configuration, this may be the issue you are facing.
