HSO Evaluation Problems

Dear All,

My platform as list:

Control Board: B-G473E-ZEST1S
Power Board: STEVAL-LVLP01

Platform: MCSDC 6.3.0, (I attached my Workbench configuration file as follow)

CubeIDE: 1.15.1

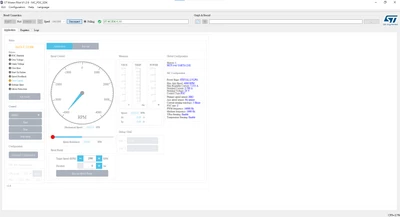

When I try to evaluate the HSO, the Motor pilot appear in weird value.

The speed reference and mechanical speed is wrong.

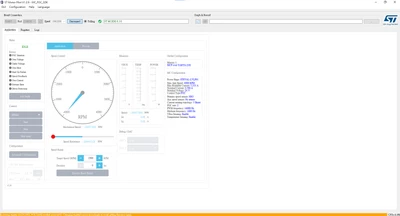

Also, there are a orange waring, "Access Register of Bus Voltage resulted in error" on the buttom.

Once I start the contol, it will occurs "Over Current Fault"

Has anyone encountered a similar issue? How can it be resolved?

Best Regards,

ST Employee

Hi,

In fact you are trying to use STOPLL/Cordic UI with a HSO firmware.

Please load the MC_FOC_ZEST.qml UI instead.

Thanks

BRs
