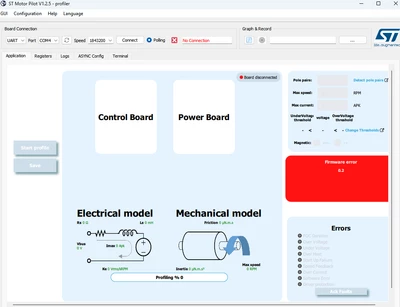

I am getting Frimware error for ST Motor Profiler V1.2.5

[sunilchowdary_19]

I am trying to create a new project for Nemo 23 PMSM with STM32F303RE control board and X-Nucleo-IHM08M1 power board but while creating new confirugation for my motor getting frimware error.

Can anyone please help to resolve the issue.

ST Motor control work bench version: 6.2.1



[Gael A]

Hello sunilchowdary_19,

Have you enabled the MotorProfiler via WorkBench in your project ? It is located in the Application Configuration tab. Also be aware that profiling is only available for 3 shunts configurations.

[sunilchowdary_19]

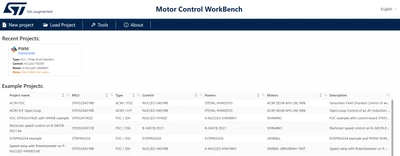

I didn't see any application configuration in the motor control workbench. Can you please guide me how to proceed and it is a 3 shunt project with FOC





[Gael A]

Hello sunilchodwdary_19,

For this kind of request, I would firstly recommend you to have a look at our STM32 Motor Control wiki. Most information should be available there. Feel free to reach out to us again if there is something you don't understand.

[sunilchowdary_19]

Still, I'm getting a firmware error can you please help with the motor profiler?

[Gael A]

Hello sunilchowdary_19,

Could you be more specific on your course of action, and provide us with your project file please ?
