Tejashree
Associate III
January 5, 2022
Question

I am using HALL sensor mode on Tim4 and PWM generation with TIM1. I don't understand now how do i read hall sensor status .

  • January 5, 2022
  • 2 replies
  • 2053 views

HAL_TIMEx_ConfigCommutEvent(&htim1, TIM_TS_ITR3, TIM_COMMUTATION_TRGI);

// HAL_TIM_IC_Start(&htim4, TIM_CHANNEL_2);

   HAL_TIMEx_HallSensor_Start_IT(&htim4);

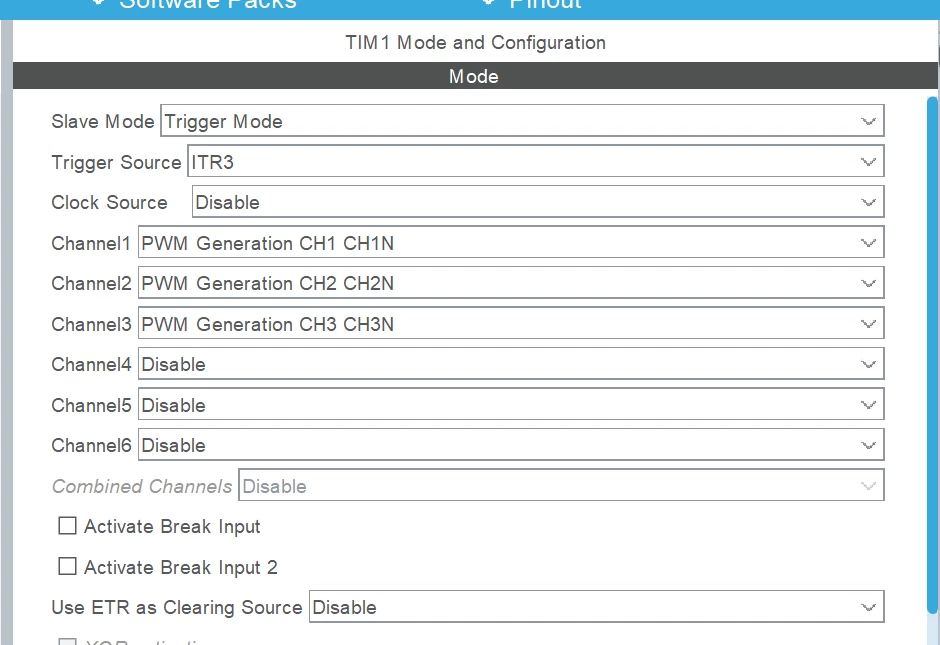

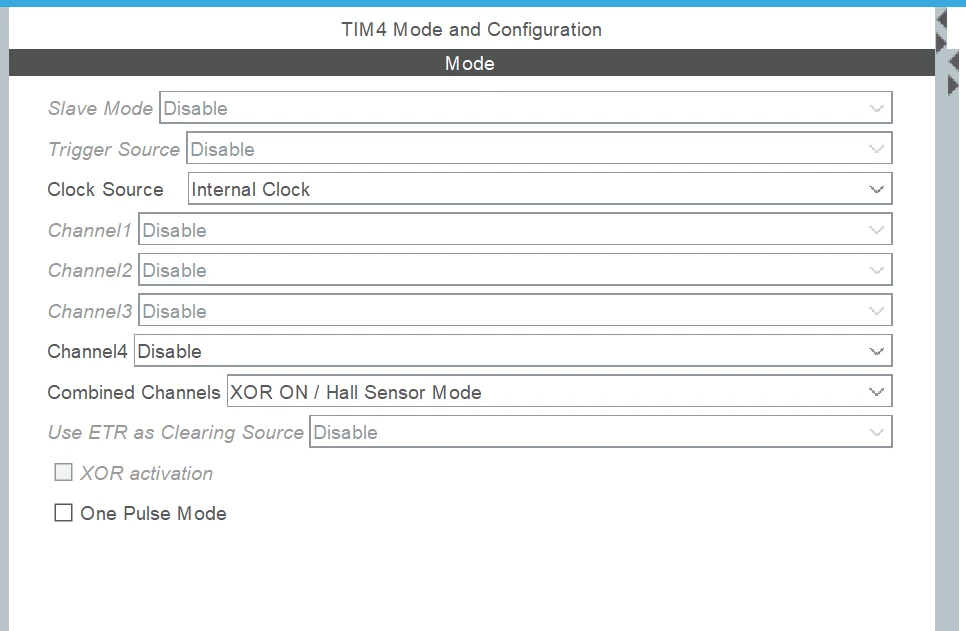

here is my config setting:

0693W00000Hqc4hQAB.png0693W00000Hqc56QAB.pngbelow is my capturecall back function.

void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim)

{

if (htim->Channel == HAL_TIM_ACTIVE_CHANNEL_1) // if the interrupt source is channel1

{

if (Is_First_Captured==0) // if the first value is not captured

{

IC_Val1 = HAL_TIM_ReadCapturedValue(htim, TIM_CHANNEL_1); // read the first value

Is_First_Captured = 1; // set the first captured as true

MotorCommutation() // in this function i read hall sensor status

}

else  // if the first is already captured

{

IC_Val2 = HAL_TIM_ReadCapturedValue(htim, TIM_CHANNEL_1); // read second value

MotorCommutation();

}

__HAL_TIM_CLEAR_FLAG(htim,TIM_FLAG_UPDATE);

}

}

Now i don't understand how i should read HALL sensor status using capturecallback function and trigger the desired channel.

Can some help me how I can read the status and trigger the pwm over the commutation event?

This topic has been closed for replies.

2 replies

cedric H
Technical Moderator
January 5, 2022

Dear @Tejashree​ ,

It seems that you do not use the x-cube-mcsdk available here.

This is the best help we can provide ! Using the MC_SDK, you will end-up with a fully functional project with hall sensors if you selected them. Up to you to analyze the code and understand how did we do.

Regards

Cedric

SMush.3
Visitor II
July 11, 2022

 @Tejashree​ I am also working on the same thing. Did you find any solution?
