I bought the assembly B-G431B-ESC1 to test BLDC motor.
I have already installed the software SDK V5.4.8, StmCubeMX and StmCubeID 1.13.0.

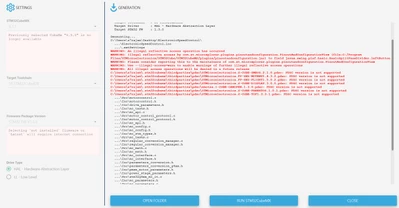

Unfortunately, when generating the code, there are various errors that I can't figure out.
Also, how can I load the finished software via stmCubeID.
the board has an embedded ST-link.
the stmCubeID does not recognize the driver.
how can still access the board.

Thank you guys for the support








    This topic has been closed for replies.
    Best answer by Zied b.

    Hello @Rajabi ,
    I suggest 2 solutions:
    1- after generating the files, click on "Open Folder" you arrive in the project folder, open the "STM32CubeIDE" folder then you can launch the .project file with your STM32CubeIde.
    2- Otherwise use version 6.1.2 of the MCSDK which is more recent and which integrates more recent tools for your use. You still need to follow step 1 suggested above even with MCSDK 6.1.2.

    1 reply

    Z
    Zied b.Best answer
    ST Employee
    August 18, 2023

    Hello @Rajabi ,
    I suggest 2 solutions:
    1- after generating the files, click on "Open Folder" you arrive in the project folder, open the "STM32CubeIDE" folder then you can launch the .project file with your STM32CubeIde.
    2- Otherwise use version 6.1.2 of the MCSDK which is more recent and which integrates more recent tools for your use. You still need to follow step 1 suggested above even with MCSDK 6.1.2.
