MCSDK 6.3.2 GenerateCode error about include path

[ZHOUXIANG]

I created a project based on PLL+Profile,  when compile the project, I get a ERROR, about include path. I search the file and add the path(../../Drivers/CMSIS/DSP/Include) into project manaully, compile success. Is this a bug?



[mbarg.1]

Bug described in my post

STM32CubeIde BUG – wrong behavior with __has_include(“xxx.h”)

can generate this error.

Double check if it is your case.



[GMA]

Hello @ZHOUXIANG,

Thank you for your report.
This is issue could occur if you generate first a project without Motor Profiler feature enabled and regenerate it with Motor Profiler feature enabled. Generating a Motor Profiler project from scratch, compile error should not be present.

[ZHOUXIANG]

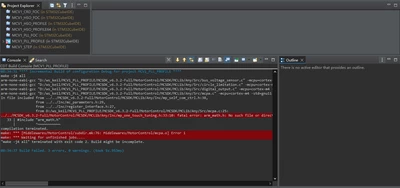

As the screenshot shows above, I creat 3 independent projects, MCV1_57_PLL_FOC(without profile), MCV1_57_PLL_PROFILE(with profile). I need to read the codes in these 3 projects at the same time, I will not want to regenerate again and again, it takes too much time. For verifying this issue, based on these 3 stwb6 files, I generate, compile, delete the output folder and repeat again. MCV1_57_PLL_FOC is always ok, but MCV1_57_PLL_PROFILE is always failed.

I have upload the stwb6 and json files, and list version and info below:

Environment Version:

MC Workbench 6.3.2

CubeMX 6.14.1

CubeIDE 1.18.1

PROJECT INFO:

MCV1_57_PLL_PROFILE.stwb6 = MCV1.json + TB 57BL75S10-225TF9HQ.json(unprofiled)

MCV1_57_PLL_FOC.stwb6         = MCV1.json + 57LSPRO2.json(have been profiled)

Thanks for your reply.
