Mismatch of current sensing with 3-shunt topology at the EVSPIN32G4 board

[rokkie]

Hello,



I'm struggling with frequent overcurrent faults at the EVSPIN32G4 board.

I found some mismatch of current sensing with 3-shunt and 2-OPAMP topology.

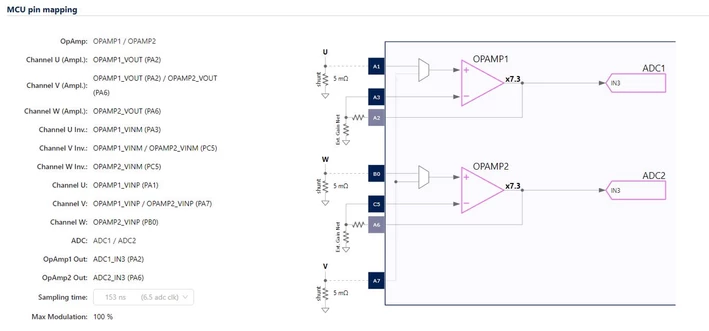

Default current sensing for EVSPIN32G4 is described as following diagram at motor control workbench.

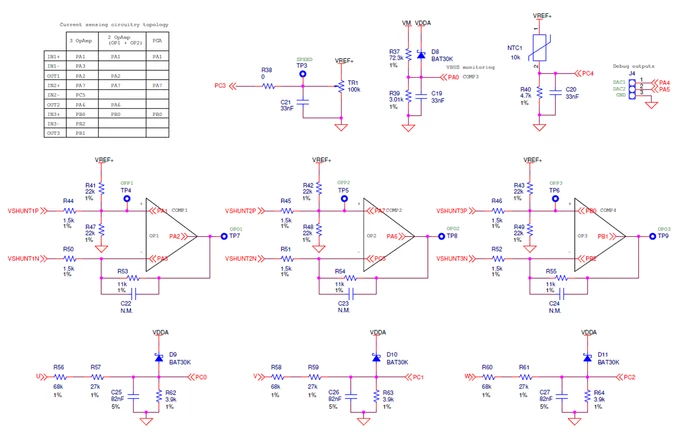

But, the EVSPIN32G4 schematic drawing is as follows.

It is a mismatch of the MC workbench and the schematic of EVSPIN32G4

[MC workbench : W Phase] OPAMP2 (+) : PB0, OPAMP2 (-) : PC5, OPAMP2 (out) : PA6

[Schematic: V Phase]  OPAMP2 (+) : PA7, OPAMP2 (-) : PC5, OPAMP2 (out) : PA6



I'm wondering about this mismatch and it might be the cause of overcurrent fault.

Thanks for any advice in advance.













[GMA]

Hello @rokkie,

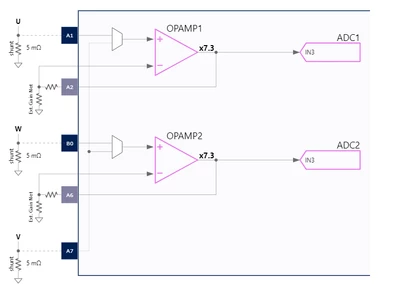

Using MCSDK6.3.2, I have a correct description on current sensing:

Are you using a modified board description?





[rokkie]

No. I am using the original EVSPIN32G4 board.

As I mentioned it, the current sensing is a little different between MC workbench and EVSPIN32G4 schematic.

[GMA]

Hello @rokkie,

Maybe I did not catch your point.
In workbench schematic you can notice that V Phase is a Shared Phase between OPAMP1+ and OPAMP2+ (thanks to OpAmp + input mux). Then OPAMP2 (+) input could be PB0 or PA7.

[rokkie]

Thanks for the quick response.

As you mentioned it at the MC workbench diagram,

W phase is connected with OPAMP2 pins through GPIOs as follows : PB0(IN+), PC5(IN-), and PA6(OUT).

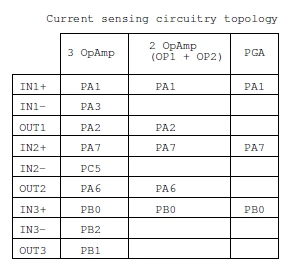

But, as according to following table from the EVSPIN32G4 schematic,

OPAMP2 pins are connected with GPIOs : PA2(IN+), PA7(IN-) and  PA6(OUT) .

I would like to know this H/W current sensing topology be matched with the automatic generated codes by the MC workbench.
