motor start up failure and move error

[gtop.1]

My hardware:

NUCLEO-F446RE + TI DRV8353 demo board(6 x PWM) + ACS725-20AB

​

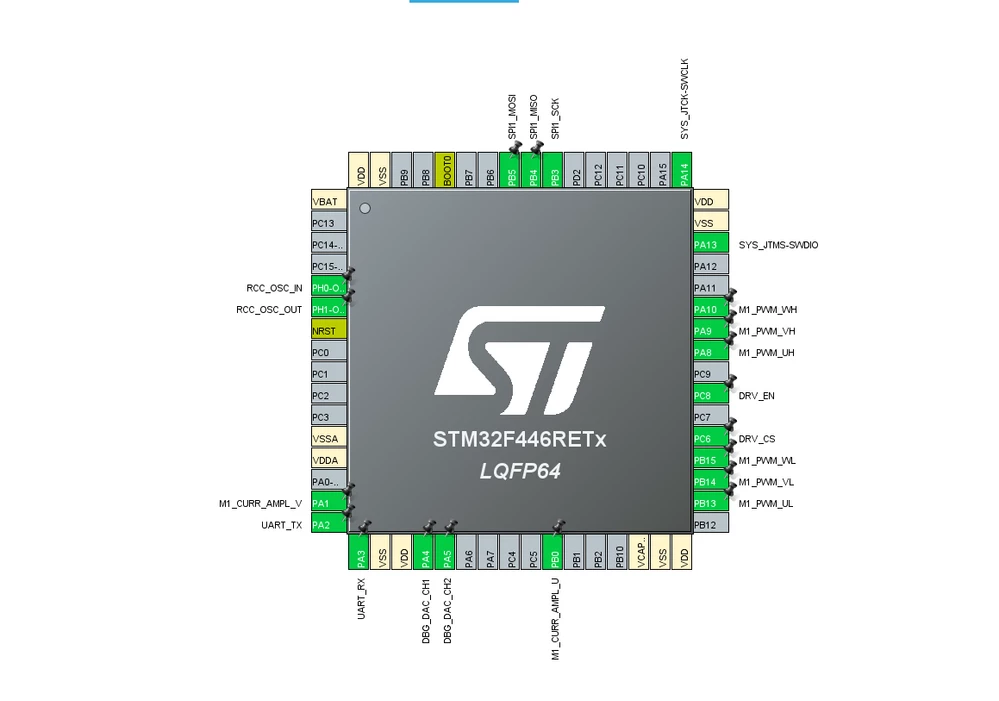

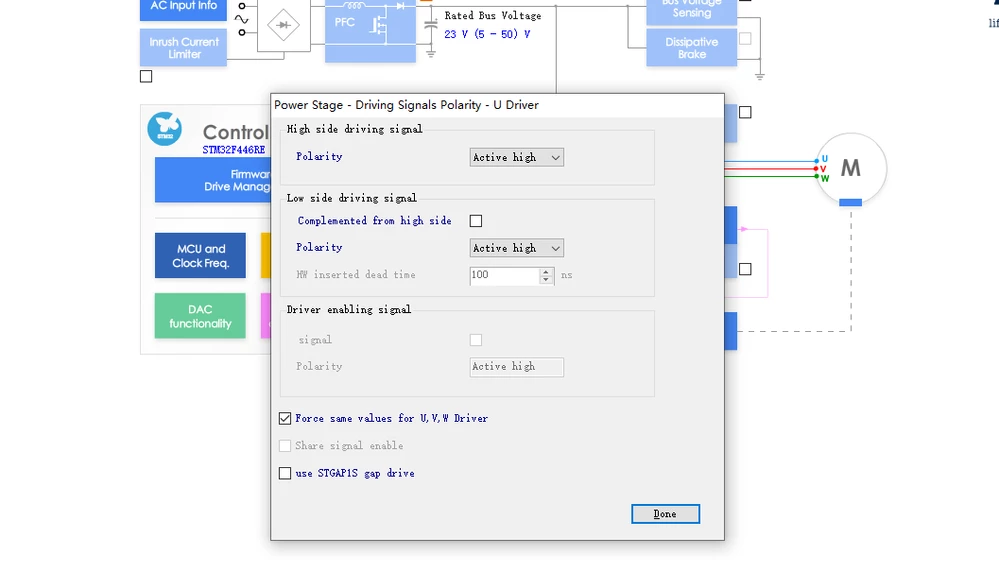

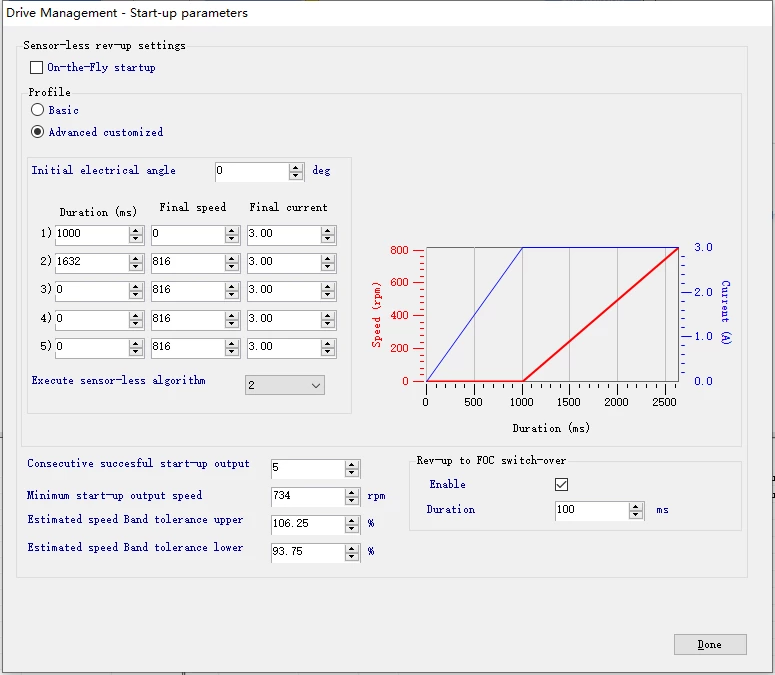

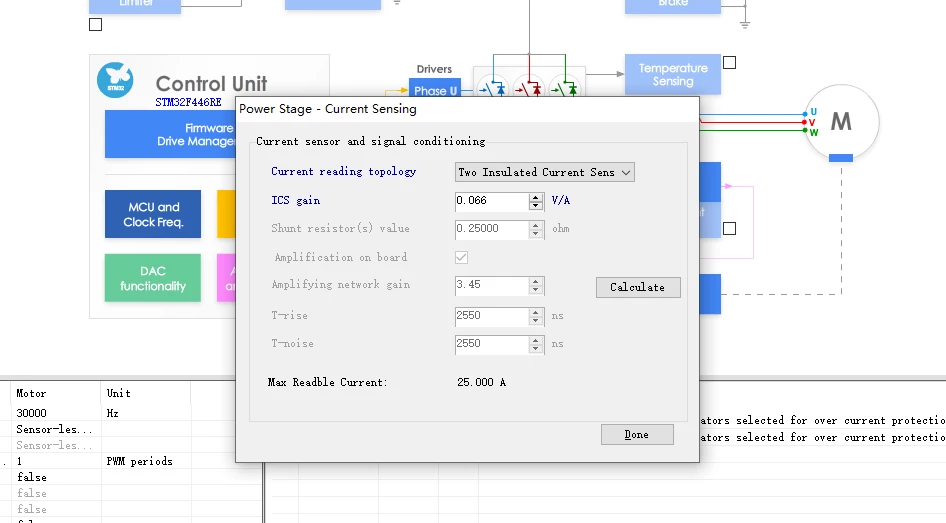

1.I set the Low side driving signal is Active high.​2.Set current sensor and ICS gain3.Start-up4.Use cubeMX add drv8353 enable pin and spi pin

But the motor start error.(It work well in NUCELO-F446RE+IHM08M1)

​

​

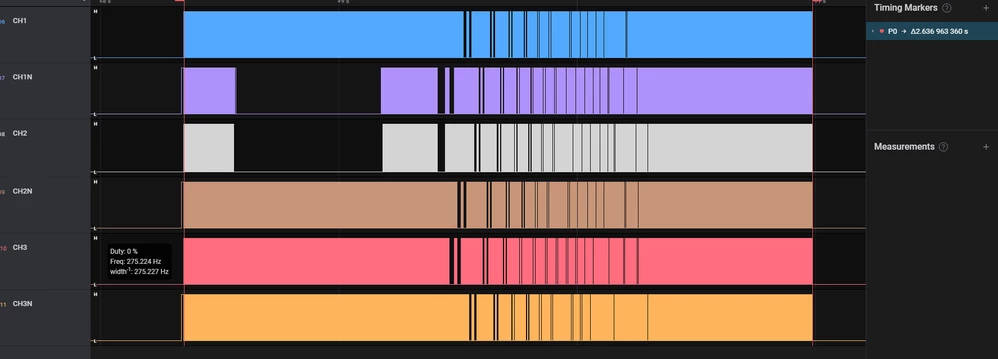

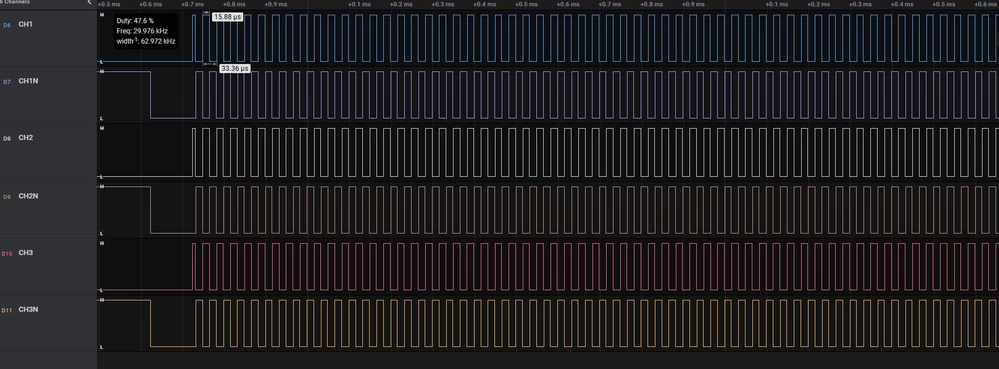

PWM output

​​

If the pwmout 's problem or the current sensor?​

​
