NUCLEO64_G4531RB + X-NUCLEO-IHM08M1 + FOC project "HW Changes"

[sgordon777]

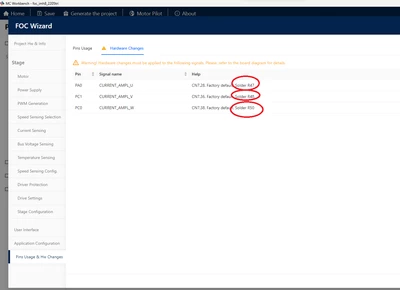

I'm having trouble understanding what the instruction below wants me to do.....



It says: "Solder R47".

-On which board?

-Solder it where?

-What value is the resistor?









[GMA]

Dear sgordon777,

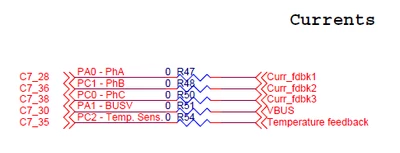

These warnings only point out that R47, R48 and R50 from IHM08 must be present in order to have current signals available. From X-NUCLEO-IHM08M1_schematic.pdf document.



[sgordon777]

Thanks! Just realized that schematic isn't searchable (its an image) which is why my search yesterday turned up nothing
