Questions about adding the CANopen protocol to STM32CubeMX.

[Dldw.1]

The CANopen protocol can be added in STM32Cubemx6.5.0, which is great! I added the emotas. I-cube-canopen.1.1.2 extension package to CubeMX Software Packs. After the Build was set up, the code was compiled normally and started to run. However, after running for a period of time, a message indicating hardware failure is displayed.CANopen is said by Emotas to have copyright restrictions, is that the reason? Hope to guide the solution.

[mƎALLEm]

Hello,

Did you contact Emotas and got a license to use CANOpen stack?

[Andrew Neil]

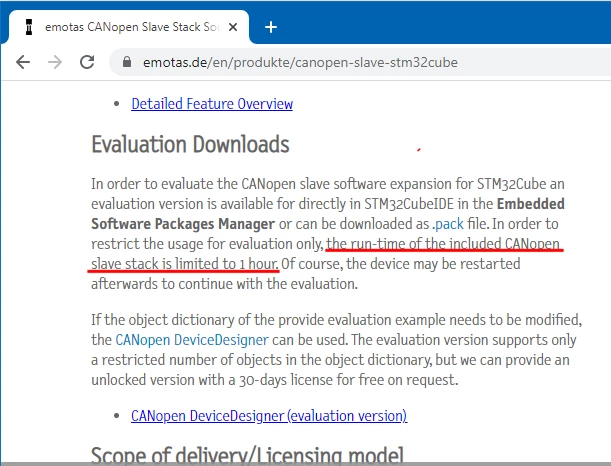

@Dldw.1​ "after running for a period of time, a message indicating hardware failure is displayed"

Would that "period of time" happen to be 1 hour, by any chance ... ?

[Michael Hilzendegen]

Hello, Yes its very likely that this is the cause.

[Andrew Neil]

@Dldw.1​ "CANopen is said by Emotas to have copyright restrictions, is that the reason?"

Have you asked Emotas that question?

It has the MadeForSTM32 badge - which means that they should be providing support for it:

https://community.st.com/s/question/0D53W00001WIWlVSAX/new-madeforstm32-what-does-it-actually-mean

[Dldw.1]

Hi Soflit �?Andrew，

Thank you very much for your answer

I went to the website of Emotas, but could not find the entry for obtaining a complete licence.

Best regards to you.

Dldw.

​

[Andrew Neil]

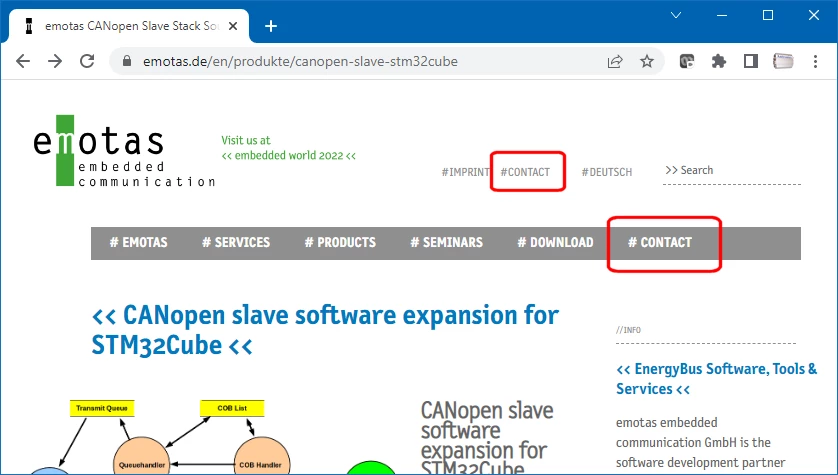

Go on - there's two 'Contact' links at the top of the page::



(might be spelled the German way - "Kontakt")

[Dldw.1]

Hi Andrew,

Thank you for your kind answer

I'll try to get in touch with them.

Best regards to you.

Dldw.

[Ozone]

Just saying ...

Dealing with CANopen implementations and stacks almost daily, you can expect a 4-digit price.

Alternatively, you can look for an open-source stack, and implement the HAL layer yourself.

[Dldw.1]

Hi Ozone，

Thank you for your advice

Are there any recommended resources？

Best regards to you.

Dldw.

​

[ged]

Hi, I am Torsten from emotas and well, a 4-digit price was a good estimation. If you plan to to a commercial project, you will get a well-proven CANopen stack with the MadeForSTM32 logo and support from us. If you rather do a private project, I can understand that the price exceeds the budget.

Best Regards

Torsten
