Sensorless FOC. Motor suddenly runs in reverse direction on load change

[jovijuan]

Hi everybody,

This is the configuration of my setup:

• MC Motor Control Workbench v6.4.1
• LL library
• 24V, 2 pole pairs, 5A, BLDC motor.
• Observer + PLL (Sensorless)
• Max speed 16000 rpm
• Custom board with STM32G491
• Control mode: speed
• Current measurement topology: 3 shunt

I am testing motor control and tuning PID constants. When I apply some braking torque to the output shaft, sometimes the motor starts rotating in the opposite direction at full speed, and it stays there.

I have experienced the same with v6.3.2

It doesn't seem to be related to control constants.

It looks like it has happened before in this forum (link) and it doesn't look like it was fixed.

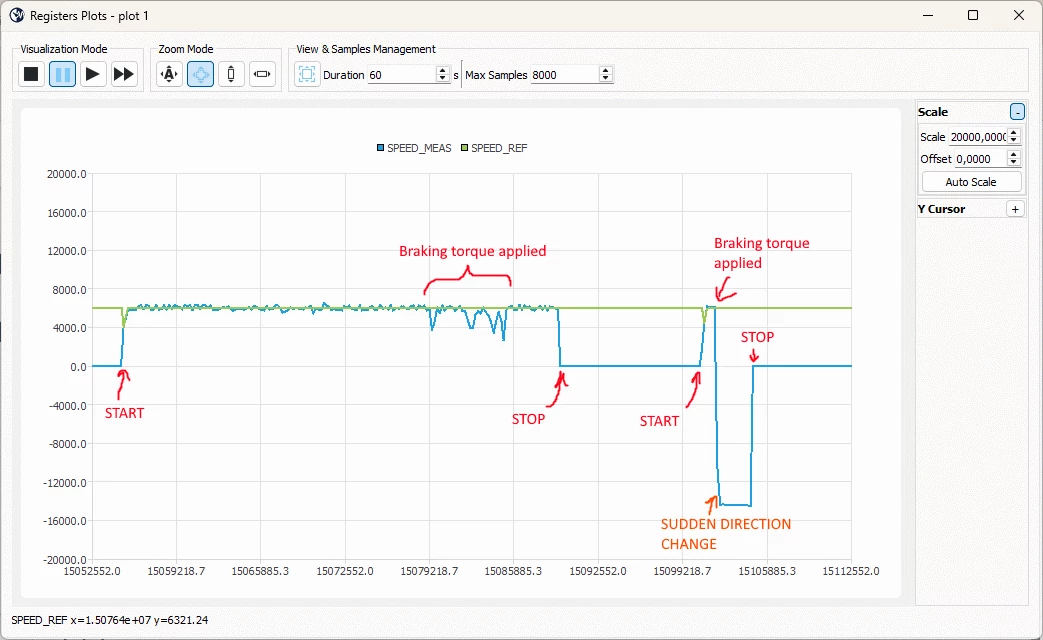

The plot with the reference and actual speed is attached.

Has anybody experienced this before?

Edit: 17/10/2025: add the missing attachment, board description, control mode and current measurement topology

[GMA]

Hello @jovijuan,

The attachment is missing.
Which boards and current topology are you using? Are you using torque or speed mode?

[jovijuan]

Thanks for pointing that out. I have edited the original post with the following details

• Custom board with STM32G491
• 3 shunt
• Speed control mode

[jovijuan]

By the way. It's a custom board, but I can run it with STLink V3 connected. I might pause when that happens or monitor variables on the fly via SWO.
I'm still checking what could be the reason. It looks like an overflow or signed/unsigned issue.

[unsigned_char_array]

Log all important variables.
You can log them periodically (maybe 10Hz?) in an array and send them live via UART or send/read them after the experiment.
