Question

ST motor pilot V1.2.9 localisation issue

  • September 3, 2024
  • 1 reply
  • 655 views

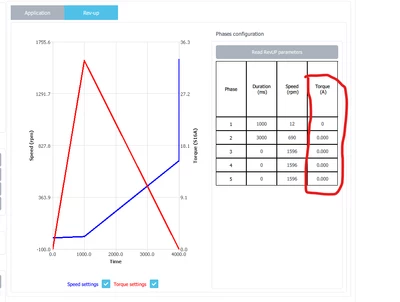

The GUI MC_FOC_SDK is supposed to be able to tune revup parameters. However, if we try to modify variables in the Torque-column (and only in this column), all input is reset to zero:


I have tracked the issue down to RevUpComponent.qml -> doublespinboxdelegate -> valueFromText: function(value, locale). Where apparently the locale is not set correctly, causing a comma/period mixup.

When I change "Regional Format" in windows 11 from "Norway" to "English(United States)", it works as expected.

1 reply

GMA
Technical Moderator
September 4, 2024

Hello @LLang,

Thank you for your report and the workaround.
We will start working on a fix and we will come back to you shortly once we know more about it.

If you agree with the answer, please accept it by clicking on 'Accept as solution'.Best regards.GMA
