STEVAL-CTMV009V1 3ICS.

[tezz]

Hi, st team,

mcsdk: 6.2.1

control board: nucleo-g474re

Bridge: XNUCLEO-IHM09M2

Power Board: STEVAL-CTM009V1

We're going to buy around 10k-25k uc per year.

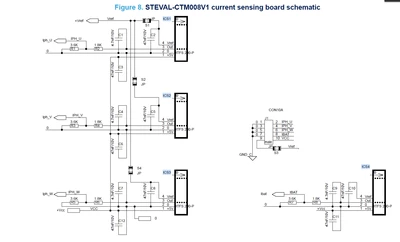

1. STEVAL-CTM008V1 schematic diagram defines that it is possible to use 3 ICS.

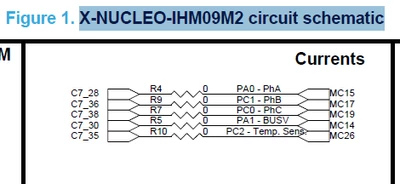

2. X-NUCLEO-IHM09M2 circuit schematic Fig.1 defines that PhC current can be obtained via MC19(PC0)



I've assembled STEVAL-CTM008V1 with 3-rd magnetic current sensor.

Could you please advise how can it be achieved?

1. Can I configure 3-ICS reading via workbench?

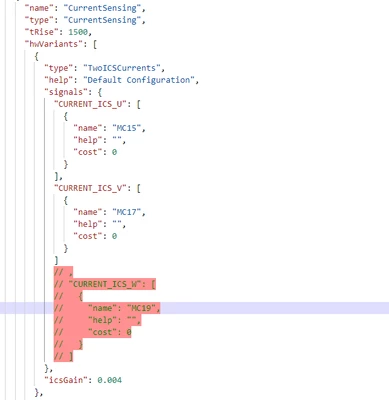

2. If I clone STEVAL board, is it possible to configure the current sensing to read the 3-rd sensor?



3. Should I modify firmware sources, generated by workbench?



Appreciate in advance,

Taras.

[Gael A]

Hello tezz,

Currently only the 2-ICS configuration is supported by the MCSDK (latest 6.2.1). Thus, modifying the STEVAL-CTM009 board description won't help you.
You will have to modify the firmware sources to enable 3-ICS configuration for the STEVAL-CTM009.

[tezz]

Appreciate
