STSPIN230 Evaluation board -> X-NUCLEO-IHM11M1

[NIVI]

Hi,

In X-NUCLEO-IHM11M1,

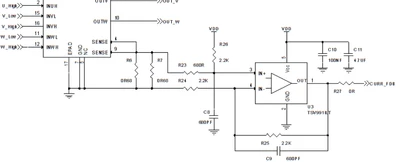

1) What is the Formula to convert the Current feedback Output from OPAMP ?

2) What is the relation of the voltage read in current Feedback pin and the motor Current value?



[Zied b.]

Hello @NIVI ,

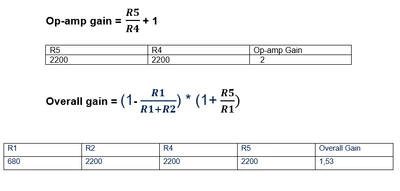

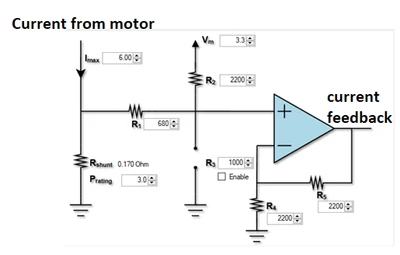

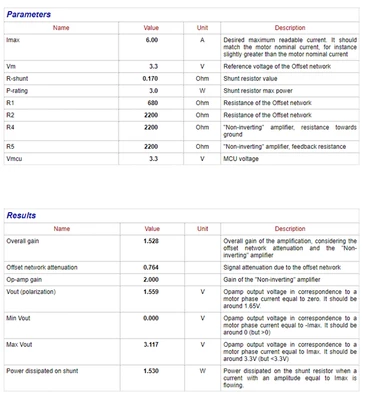

In the attached file you will find all the necessary information for the opamp on ihm11, in the picture below, how the calculations are made:







Regards
