UM1052 Back emf waveform

  • May 29, 2023
  • 0 replies
  • 594 views

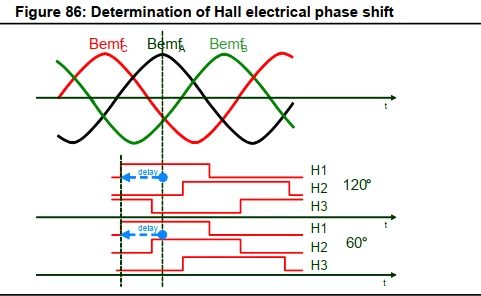

In the determination of the Hall electrical phase shift shown in the UM1052 document


_legacyfs_online_stmicro_images_0693W00000bl31EQAQ.pngPlease tell me BemfC i am assuming it is C with respect to A ?

BemfA is Phase A with respect to B?

BemfB is Phase B with respect to C?

I mean it is the phase to phase voltage and not phase to neutral voltage?
