GareyAuthor
Associate II
September 19, 2025

Thanks! @AScha.3

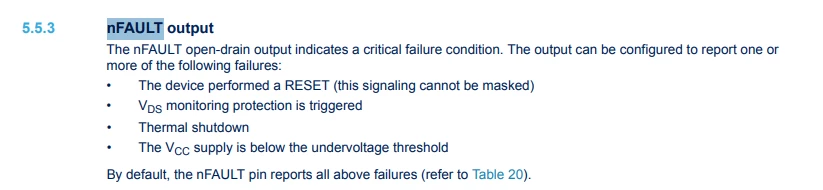

So that means nFAULT will be triggered if Vds is greater than 1.03125 V?  : )




G
GareyAuthor
Associate II
September 19, 2025

Hi @AScha.3

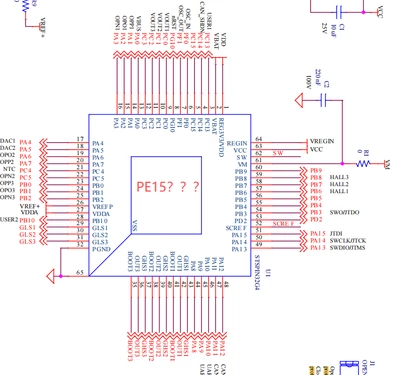

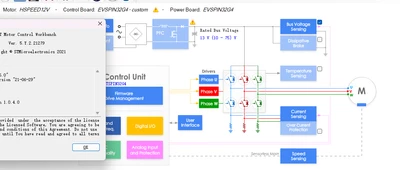

If I’m using the Workbench from MCSDK_v5.Y.3, how do I enable the Vds protection feature? ：）




AScha.3
AScha.3
Super User
September 19, 2025

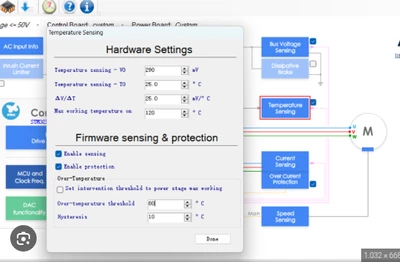

Sorry, not my game...

read...

https://www.st.com/resource/en/user_manual/um3027-how-to-use-stm32-motor-control-sdk-v60-workbench-stmicroelectronics.pdf

or maybe search in forum here:

https://community.st.com/t5/stm32-mcus-motor-control/over-voltage-protection-options-motor-braking-resistor-output-no/td-p/744385

+




"If you feel a post has answered your question, please click ""Accept as Solution""."
