which board is suitable for this motor "mahle 48 volt 3.3KW motor"

[Ranjeet Singh]

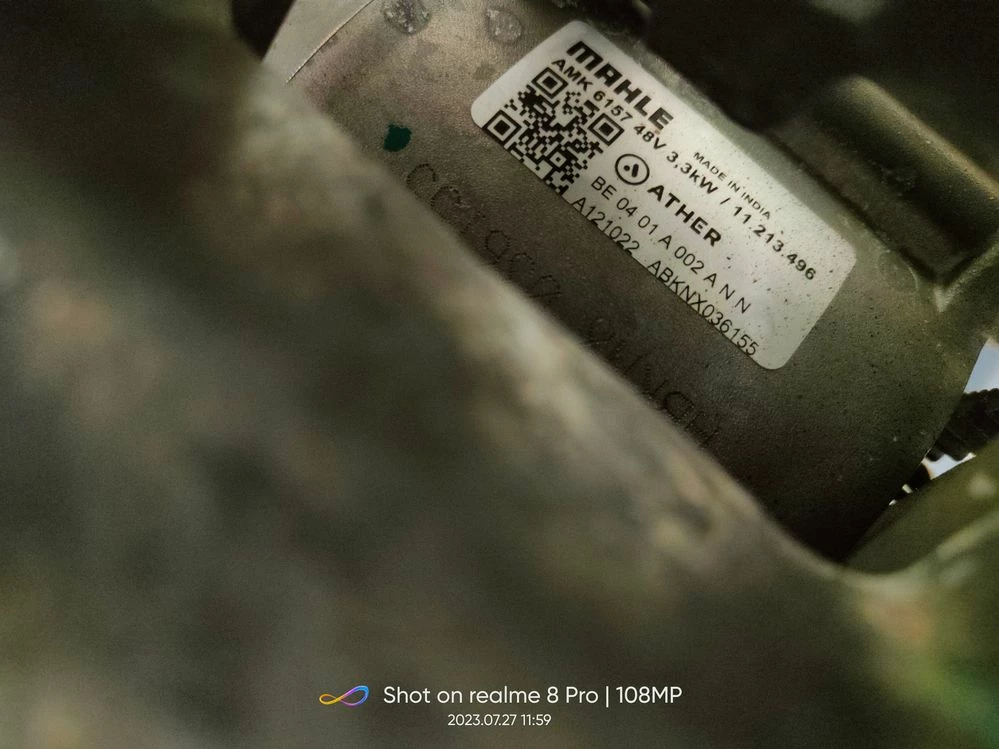

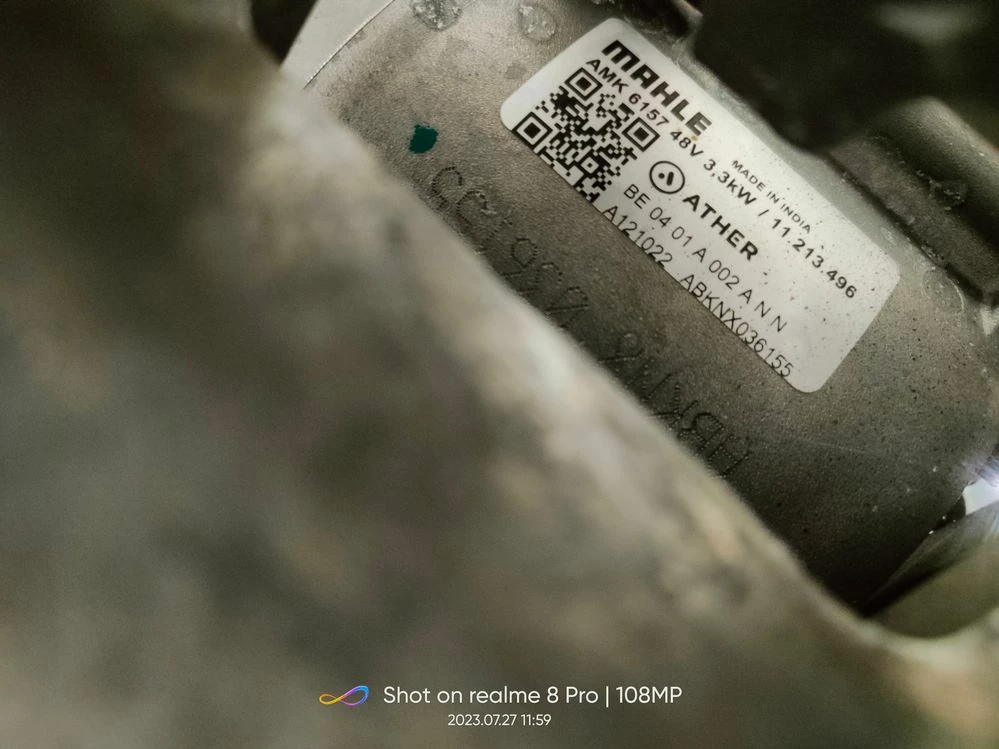

we have a ather  electrinc schooter ,they have used the 48 volt motor .motor image is attached .i am confusing that for this motor which board we can use for no load run ?

[Zied b.]

Hello @Ranjeet Singh
I suggest the St Mc Suite tool, which lists you the Motor Control compatible boards with the details, Here is the link : https://www.st.com/st-mc-suite/home/

- Click on - Start -> Engine Control Solution
- select the motor type (BLDC)
- select the algorithm
- then choose your board in Power Board

The STEVAL-CTM009V1 board can meet your expectations.

Regards

[Ranjeet Singh]

hi @Zied b.

at 48 volt using  STEVAL-CTM009V1  board what maximum current we can draw from this  board ?

i think 104 A . am i right ?

[Zied b.]

Hello @Ranjeet Singh
For the voltage you are looking for, you have EvalStDrive101

Rated Voltage: [6 - 75] V

Rated Current: 20 A
And STEVAL-CTM009V1

Rated Voltage: [5 - 48] V

Rated Current: 200 A

Both will be supported by MCSDK 6.2 which will be released very soon

[Ranjeet Singh]

thank you for your support @Zied b.
