5V tolerant Gpio pins stm32h7a3zi

  • June 26, 2025
  • 2 replies
  • 409 views

iam working on stm32h7a3zi controller in that datasheet they mentioned up to 164 I/O pins capable of 5V tolerant but they didn,t mentioned about which pins are capable of 5v tolerant

Best answer by Ozone

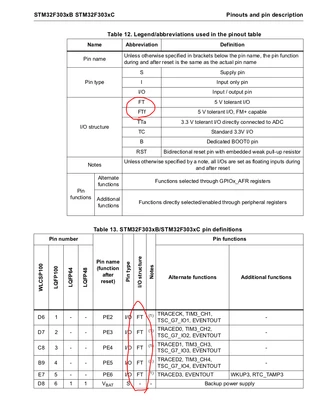

Reading datasheets is an essential skill. Here an example for another MCU variant:




2 replies

Ozone
OzoneBest answer
Principal
June 26, 2025

Reading datasheets is an essential skill. Here an example for another MCU variant:




    Andrew Neil
    Andrew Neil
    Super User
    June 26, 2025
    @Arun3 wrote:

     they didn,t mentioned about which pins are capable of 5v tolerant

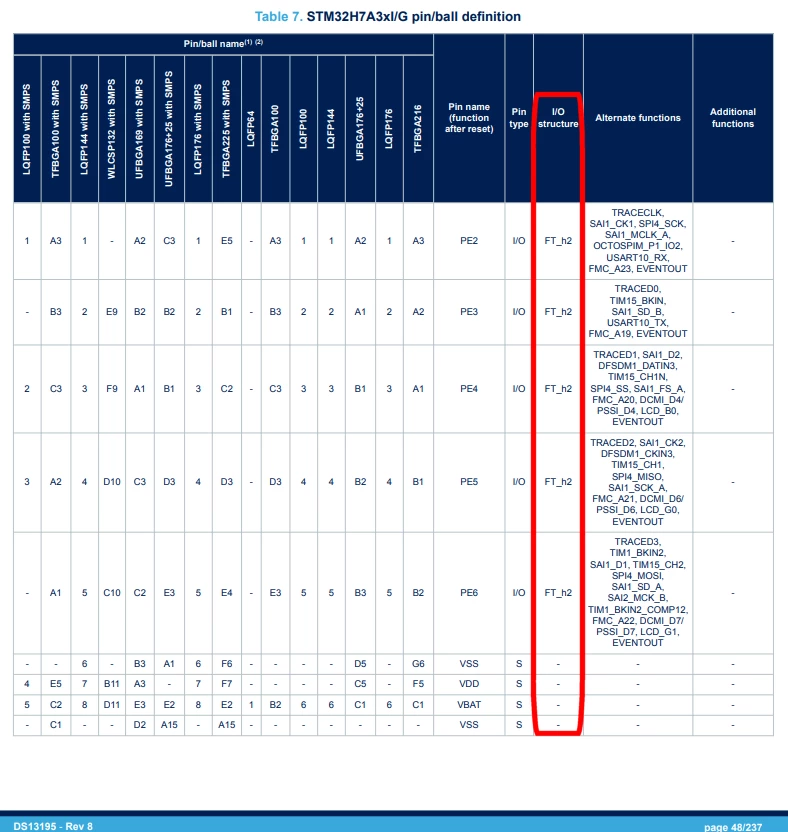

    As @Ozone said, Yes - they did:




    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
