External loader for STM32H750 discovery

[Andrew_Ghaly]

Hi,

I am searching for the external loader to flash the h750 discovery board. Can you please help me?

Best regards,

Andrew

[KDJEM.1]

Hello @Andrew_Ghaly, and welcome to the community,



Are you looking for the MTFC4GACAJCN_STM32H750B-DISCO.stdlr and MT25TL01G_STM32H750B-DISCO.stdlr files?

You'll find these files after installing STM32CubeProgrammer under the installation folder ..\Program Files\STMicroelectronics\STM32Cube\STM32CubeProgrammer\bin\ExternalLoader

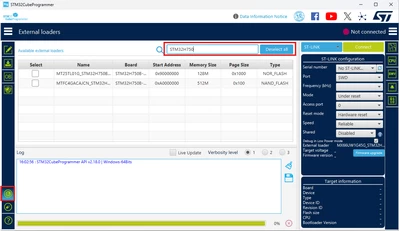

Also, you can used STM32cubeProgrammer to select these external loader.



Thank you.

Kaouthar



[MNema.1]

When I use this loader I always get errors if I check verification though.
I mean MTFC4GACAJCN_STM32H750B-DISCO
