Flash Memory Organization: STM32G491KCU6, STM32G4A1KEU6

  • October 17, 2025
  • 1 reply
  • 180 views

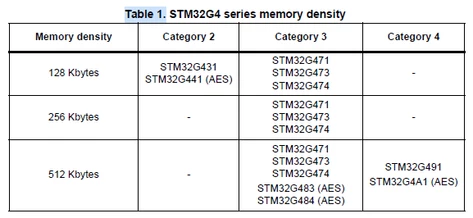

The G491KCU6 part has 256 KB flash. The G4A1KEU6 has 512 KB. Ref man (Table 1) has


No mention of 256 KB G491 part. Is it category 4?

Best answer by Issamos

Hello @mccabehm

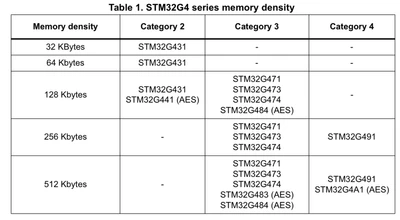

I think you are using an old version of the doc. The last version of the RM0440 (Rev 9) mention the 256KB STM32G491:


Best Regards.

II

1 reply

Issamos
IssamosBest answer
Lead III
October 17, 2025

Hello @mccabehm

I think you are using an old version of the doc. The last version of the RM0440 (Rev 9) mention the 256KB STM32G491:


Best Regards.

II
