How to find package specific specfications? STM32H723ZG for ADC

  • January 21, 2026
  • 1 reply
  • 216 views

So i was looking at the 16-bit ADC characterisics in the datasheet of STM32H723ZG.


Here it says for LQFP packages, values might differ. I have LQFP 144 , and i can't find any package specific datasheets. Where can i find the information for my package.

I was trying to find the maximum adc sampling rate.

Best answer by mƎALLEm

Hello,

I don't think these parameters are available for each package but I invite you to refer to the application note: AN5354 "Getting started with the STM32H7 Series MCU 16-bit ADC"

1 reply

mƎALLEm
mƎALLEmBest answer
Technical Moderator
January 21, 2026

Hello,

I don't think these parameters are available for each package but I invite you to refer to the application note: AN5354 "Getting started with the STM32H7 Series MCU 16-bit ADC"

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
sreyas40Author
Associate III
January 22, 2026

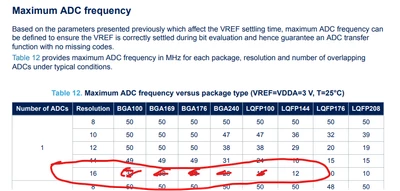

So according to this , maximum adc clock frequency is 12MHz.
