Is a database or metadata pin alternative functions available?

[qua]

Hi.

I like to make a little spreadsheet/graphic for MCUs that shows all of the available pins and the functions available on them. You can sort of view it in CubeMX, but not in a table. Makes selecting pins and layouts easier.

I do them by hand but it's a chore, especially on MCUs with a lot of peripherals. Is the data available in some form that I can process automatically? There is a table in the reference manual of each part, but it's not easy to convert to something like CSV.

Thanks.

[STTwo-32]

Hello @qua

Could you please have a look at this GitHub repository and this post. You may find what you are looking for.

Best Regards.

STTwo-32

[Andrew Neil]

---

@STTwo-32 wrote:

 have a look at this GitHub repository and this post.

---

Thanks - that looks useful!

It seems to be all XML - is there something to convert that to CSV or similar?

See also: STM32U535VE / Pin configuration table / Excel or CSV-table. by @RicOs



PS:

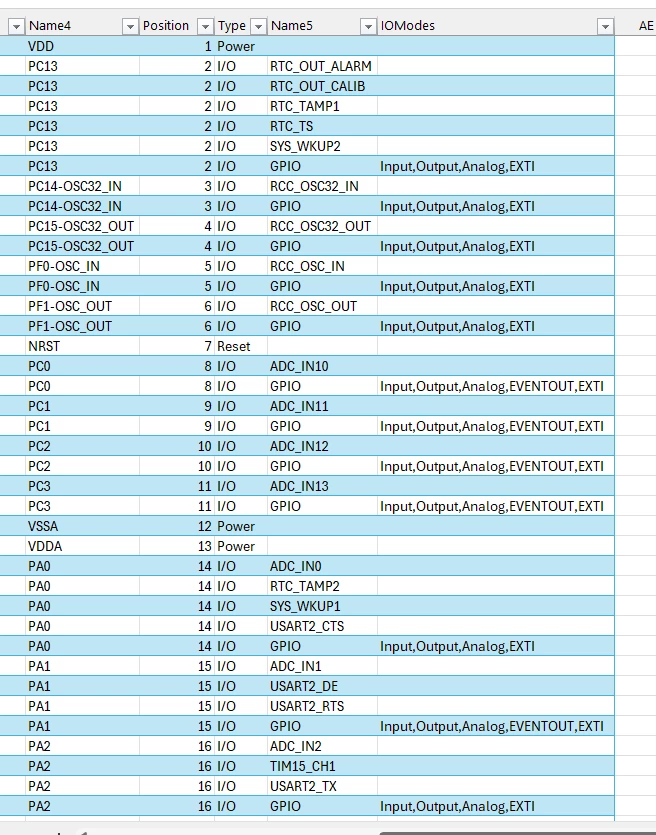

If I download STM32F030R8Tx.xml and open in MS Excel, I see this:

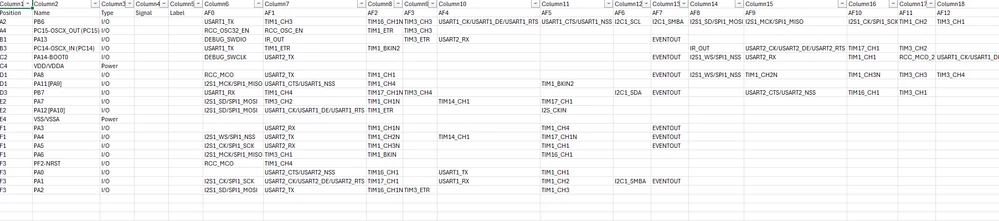

So that doesn't give  the full mapping of Alternate Functions - like this:

See: https://community.st.com/t5/stm32-mcus-products/stm32u535ve-pin-configuration-table-excel-or-csv-table/m-p/762040/highlight/true#M270653 by @Amel NASRI

[qua]

Thanks. The output from CubeMX does the job if I export with alt functions.
