low latency streaming audio over IP --- NUCLEO-H723ZG

[SWenn.1]

I am looking to stream audio over an ethernet connection to a cellular hot spot.  This will be low latency.  Can someone tell me what STM32 firmware library I should use and if this is an appropriate hardware for that task?



Thanks

[Andrew Neil]

---

---

Define "audio": how many channels? bit rate? bit depth?

Define "low latency".

When you say "ethernet", is that purely at the physical layer, or do you also need to be IP-based?

Especially with IP, it is a non-trivial exercise - doubly so with wireless links.

https://en.wikipedia.org/wiki/Audio_over_Ethernet



[SWenn.1]

Hello Andrew.

Great questions!

This will be up to about 10kHz 12kHz.

Low latency will be sub second.

IP-based.

Right now my vision (and please feel free to jump in here).

I have a NUCLEO-H723ZG on the way.  I am looking at the X-CUBE-OPUS and X-CUBE-ETHERNET libraries to integrate.  I 'hope' I can take A/D samples, create PCM for the OPUS and send to the ETHERNET library. Initially I want to get the pieces in place and do a proof of concept. On the final solution I am still out on the fence as whether to use UDP/Multicasting vs TCP to a website and hosting....I guess it comes down to reliability vs latency in that sense.

Thoughts?



Steve



[Andrew Neil]

---

@SWenn.1 wrote:

This will be up to about 10kHz 12kHz.

---

Is that your sample rate?

What bit-depth?

Mono or stereo?



---

@SWenn.1 wrote:

Low latency will be sub second.

---

eg, 950ms would be OK ?

Another issue to consider on IP networks is the allowable "jitter" on that ...

[LCE]

I'm doing that with the H723 / H733 / H735.

8 audio channels (I2S from the 2 SAIs) at 32 bit / 200 kHz (51.2 Mbit/s) via DMA to internal SRAM buffers to HyperRAM via DMA to ETH via TCP to PC host.

I use lwIP (some minor parts tuned a little) and self-made ETH-driver, no OS.

CPU at 400 MHz, no audio processing, CPU sleeping about 50%.

Works like a charm.

If you have a client that's taking data quickly and reliably (so just do not plug into "a network" but directly to host) you probably don't need extra RAM, and latency will be about 2 packet times (guessing: < 5 ms).

So how many audio channels do you have, just this one?
Anyway, at that sampling rate it shouldn't be a problem - BUT it will be lots of work.

Spoiler: CubeMX, and even many HAL functions will not do all the work for you.
In all of my "signal path" relevant code there's only HAL_GetTick() left from HAL. :D

[SWenn.1]

Just one audio channel.  I too was hoping to avoid OS.  That is really low latency!  Can you explain the

" (so just do not plug into "a network" but directly to host)"....

My vision would be to send to a IP address of at say AWS and users could stream off of that...

[LCE]

> My vision would be to send to a IP address of at say AWS and users could stream off of that...

Live streaming to or from AWS? Anyway, I have no idea about that.

Sometimes Windows 10 alone has other stuff in mind, and the more nodes in the network, the more your latency goes up - and more than the inbuilt RAM might be needed (prolly not with 1 channel at 16b/48k).

So, my short latency is in a super small network: STM32 - PoE switch - PC.
I have seen latency go up in our company office network, depending on the traffic.
I have tweaked lwIP PCBs by adding DiffServ / QoS priorities, but I have no idea if that actually helped.
There's some more testing to do on my side...



[LCE]

Sorry, I don't.

[SWenn.1]

@LCE ...

Firstly I apologize for the length here.....In short I am just trying to get a ping tx and rx from a nucleo....Most is sharing of what I have done / setup....Hoping you can enlighten me to something I may have missed??

I received my nucleo board NUCLEO-H723ZG.  I followed the following video instructions:
https://www.youtube.com/watch?v=8r8w6mgSn1A&list=PLfIJKC1ud8ggZKVtytWAlOS63vifF5iJC&index=1

as best as I could given the RMII vs his MII as well as sizes because the 723 is smaller and the code compiled and I do not get fault errors when running.  However I do get Destination Host Unreachable constantly.

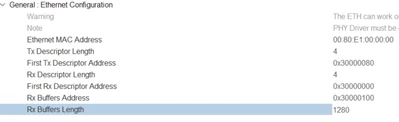

My CubeMX ethernet settings are:

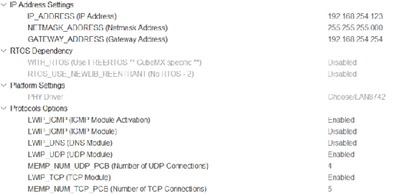

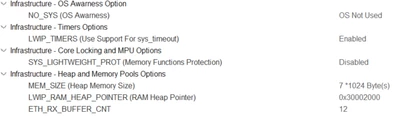

LWIP settings:

The sizes keep everything within SRAM1 per the datasheet (0x30000000 - 0x30003FFF)....

I altered the xxx_FLASH.Id file with :

 .lwip_sec (NOLOAD) :
 {
 . = ABSOLUTE(0x30000000);
 *(.RxDecripSection)

 . = ABSOLUTE(0x30000060);
 *(.TxDecripSection)

 . = ABSOLUTE(0x300000C0);
 *(.RxArraySection)
 } >RAM_D2

and finally the ethernetif.c file to :

ETH_DMADescTypeDef DMARxDscrTab[ETH_RX_DESC_CNT] __attribute__((section(".RxDecripSection"))); /* Ethernet Rx DMA Descriptors */
ETH_DMADescTypeDef DMATxDscrTab[ETH_TX_DESC_CNT] __attribute__((section(".TxDecripSection"))); /* Ethernet Tx DMA Descriptors */

#endif

#if defined ( __ICCARM__ ) /*!< IAR Compiler */
#pragma location = 0x30000100
extern u8_t memp_memory_RX_POOL_base[];

#elif defined ( __CC_ARM ) /* MDK ARM Compiler */
__attribute__((section(".Rx_PoolSection"))) extern u8_t memp_memory_RX_POOL_base[];

#elif defined ( __GNUC__ ) /* GNU */
__attribute__((section(".Rx_PoolSection"))) extern u8_t memp_memory_RX_POOL_base[];
#endif

/* USER CODE BEGIN 2 */
RxBuff_t rxBuff[ETH_RX_BUFFER_SIZE] __attribute__((section(".RxArraySection")));
/* USER CODE END 2 */

so that the sections exist.

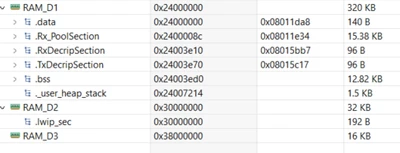

When I run I don't crash or hang up but I do notice that in the Build Analyzer section I do NOT get the .RxAarraySection to show up.  And here is the confusing part...Notice RAM_D1 seems to be showing the RxDecriptSection, etc at 0x24000000 space vs RAM_D2....From your experience can you shed any light on this?

Thanks

Steve





[LCE]

Alone seeing this "RxDecriptSection" from Cube gives me the creeps... :D But I'm a little oversensitive with things like that.

Anyway,

0) RMII should be no problem, setup is handled well be Cube.



1) It's important that the descriptors are in SRAM1, the TX / RX buffers can also be in AXI SRAM - where you actually placed the lwip pool (used for lwip packet buffers "pbuf"), which is okay.

Check RM0468, 2 Memory and bus architecture, it starts with a table which bus master (incl. ETH DMA) can access which RAM or peripheral.

2) rxBuff: the declaration looks good, so is that actually used somewhere? Should be... but I don't use the ETH HAL driver.

I would debug with a breakpoint somewhere in "ethernetif.c" where ethernet data is received and given to lwip.



As I said, it will be lots of work, with lots of frustration - but the H7 can do it!
