PC connection to STM32L432 for data communication

[Raphael716]

Hello everyone,

I have a Python app that needs to communicate with my custom STM32L432KC board. Before ordering my prototype board, I was wondering if it is possible to do it only via USB with the pins PA11 and PA12, or if I need a USB‑UART chip like the CP2101‑GM?



Thanks

[mƎALLEm]

Hello,

And what is the relation of ST-LINK in the thread's title with your question?

[Raphael716]

Actually, I'm wondering if I need an ST-Link or if the CP2101-GM chip will be able to communicate via UART without it. So, do I need an ST-Link to see the STM32 in the COM port on Windows, or will the CP2101-GM chip work as well? And is the chip necessary, or can I have a COM port with just the STM32 chip?

[mƎALLEm]

Ok but the tilte needs te be updated to more concise.

Which ST-link you are referring to? a stand alone ST-LINK like this one:?

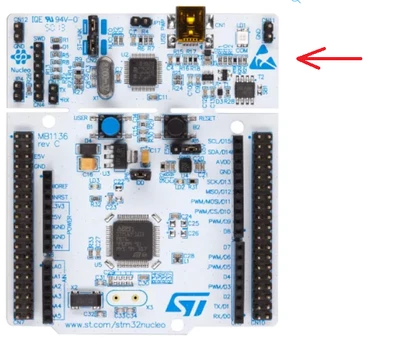

Or an ST-LINK that you've de-attached from a Nucleo board?

For the second one yes you can do it. For the first one, not possible.

Meanwhule, you can use any USB to UART bridge to connect your PC/USB to STM32/U(S)ART.

[Andrew Neil]

---

@Raphael716 wrote:

was wondering if it is possible to do it only via USB with the pins PA11 and PA12

---

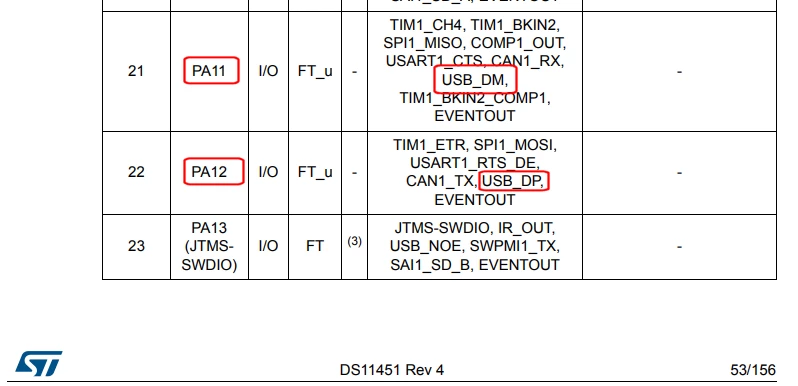

Yes, the STM32L432KC has USB on pins PA11 and PA12:

https://www.st.com/resource/en/datasheet/stm32l432kc.pdf#page=53

via: https://www.st.com/en/microcontrollers-microprocessors/stm32l432kc.html#documentation



That will mean that you will have to do a complete USB hardware design on your custom board, and provide a complete USB software implementation in your custom software.



Depending on your level of both hardware & software experience, you may find it easier to just use a USB-to-UART  adaptor...

(avoiding the complexities of USB hardware & software implementation is exactly why USB-to-UART adaptors exist)
