STM32H725REV Max Core Clock

[TKana.1]

Hi,



Planning to use VFQFPN68 package. I am confused about the max core clock I can use. CubeMx shows 550MHz for every "Power Regulator Voltage Scale (0-3)".

I remember reading VFQFPN68 has only DCDC solution so max core clock is 400MHz



Can anyone explain please?

Thanks,

Tim



[TDK]

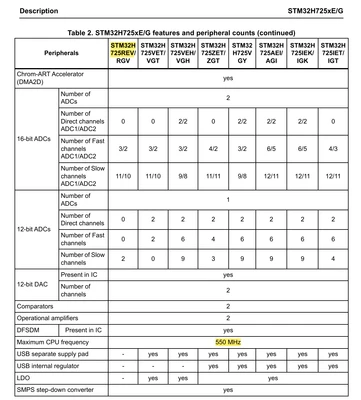

Max clock speed is 550 MHz.

Achieved only in VOS0 and BOOST.



[mƎALLEm]

Hello,

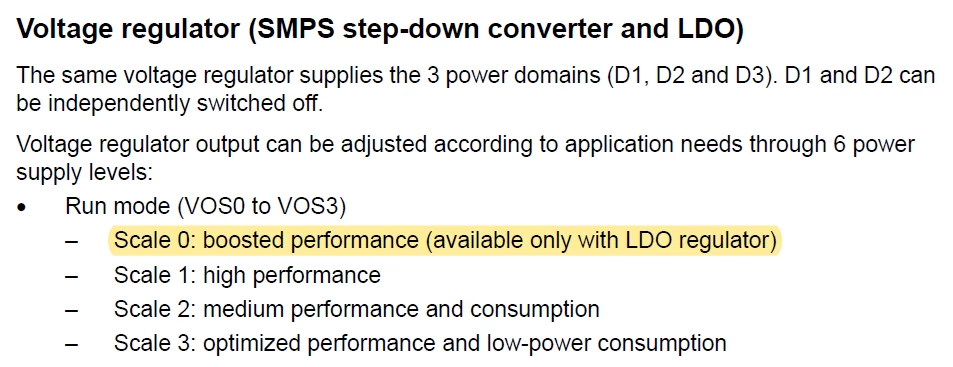

I think you are talking about STM32H7 dual core that has that restriction in SMPS mode:

But STM32H723 doesn't have such restriction in SMPS mode:

See also FAQ: Why the DIRECT_SMPS_SUPPLY option is not shown in STM32CubeMX for STM32H7 MCUs
