STM32H743 triggers multiple NWE for single write in FMC

[utku]

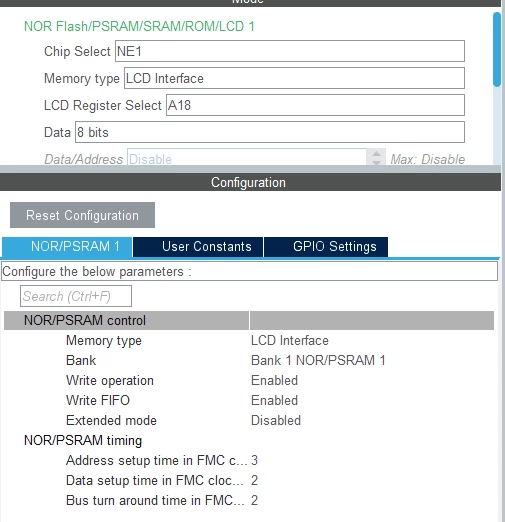

Im trying to drive 3.5 inch TFT LCD with STM32H743 using FMC. My setup is :

• ChipSelect: NE1
• Memory Type: LCD Interface
• LCD Register Select: A18
• Data: 8 Bits

My timing settings are (FMC Clock: 10Mhz):

• Address setup time in FMC clock: 3
• Data setup time in FMC clock: 2
• Bus Turn around time in FMC clock: 2

Here are the parts of code:

• #define FMC_BASE ((uint32_t)0x60000000)
• #define LCD_CMD (*((volatile uint32_t *)(FMC_BASE)))
• #define LCD_DATA (*((volatile uint32_t *)(FMC_BASE | (1 << 18))))

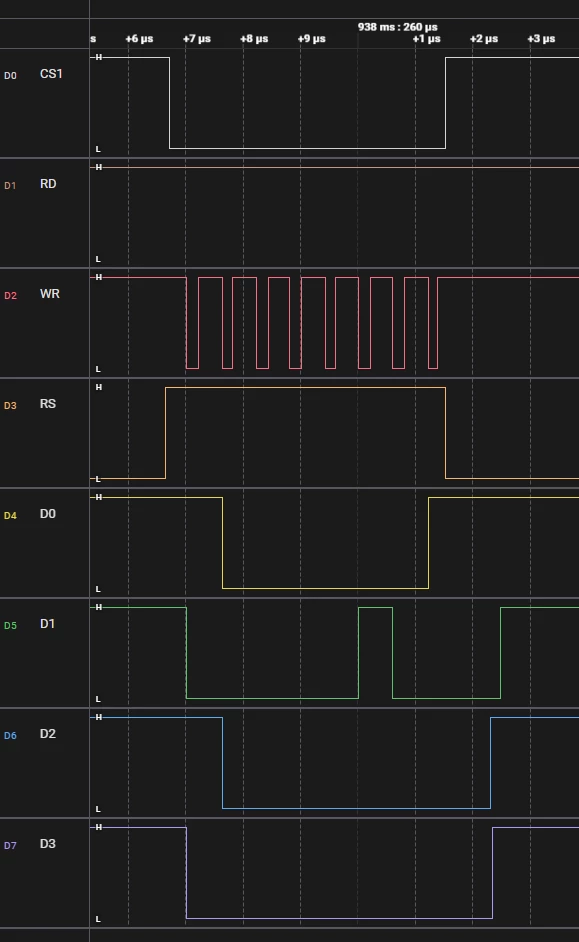

When I try to write a data, as shown in the attachment, my logic analyzer shows me multiple WR event occured and shows some weird signals on data line (D0-D3).

I do not understand where I did wrong...

[mƎALLEm]

Hello,

To drive LCDs through FMC with MCUs with Cortex-M7 you need to configure the LCD memory region in Strongly-Ordered or Device configuration using the MPU.
