STM32H753VIT6-external crystal issue

[kesavans]

Hi,

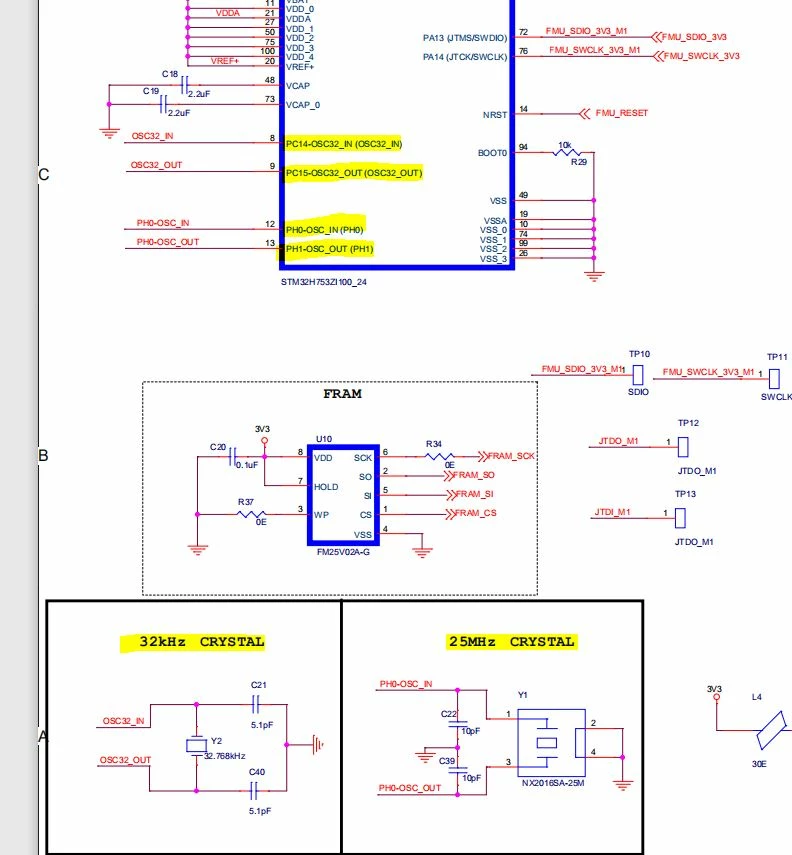

  IM USING EXTERNAL CRYSTAL NX2016SA-25M-STD-CZS-1 IN HSE 25MHZ AND LOAD CAPACITOR 10pF ,BUT I'm TRY TO USE EXTERNAL CRYSTAL IT CAN'T ENABLE . LSE 32.768kHZ ALSO NOT WORK ,HOW TO ENABLE THIS EXTERNAL CRYSTALS .MY CONTROLLER PARTNUMER IS STM32H753VIT6, and also im shared schematic please refer!

reply do action!

[TDK]

Schematic seems okay. Perhaps a code issue, or layout issue.

[kesavans]

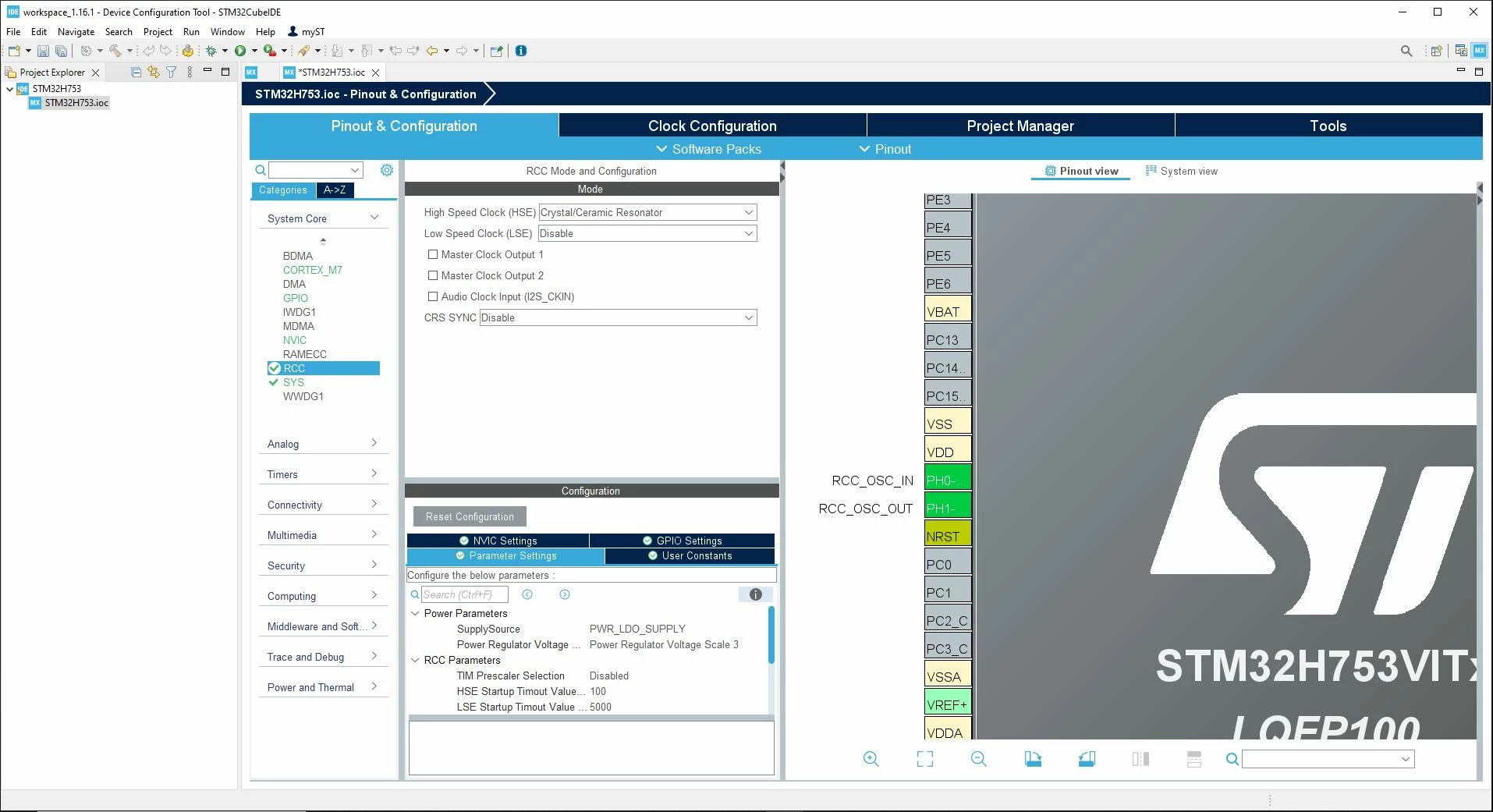

this my configuration im select HSE in ceramic resonator it's enough to activate ceramic crystal 25MHZ or need to configure something ?

PFA for then clock configuration setting image for your reference .
