STM32L4Q5RGT6: How many SPI, QSPI connections are possible?

Hi, in this STM32L4Q5RGT6 microcontroller of (LQFP48) package how many SPI, QSPI should be connected.

Best answer by KDJEM.1

Hello @abhishek_25;

Your are welcome. Thank you for your contribution in STCommunity.

Please click on Accept as Solution on the reply which solved your issue or answered your question.

Kaouthar

Technical Moderator

Hello @abhishek_25 and welcome to the community;

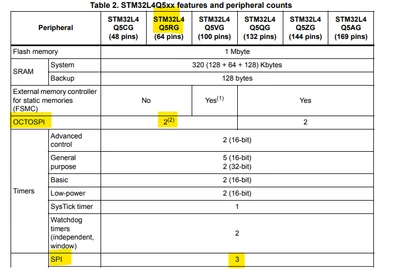

According STM32L4Q5 datasheet; STM32L4Q5RGT6 supports 3 SPIs and maximum 2 OCTOSPIs (available only on multiplexed mode).

Thank you.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Associate

Hi Kaouthar

so can I use two spi and 1 qspi in LQFP48 package.

Technical Moderator

Hello,

Yes, you can.

Thank you.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Associate

Appreciate your prompt responses.

Thank you
