STM32U5G9ZJT6Q Footprint Confirmation

[Ayyanar_Raja]

Hi Team,

I'm recently using the STM32U5G9ZJT6Q part in one of my design. I couldn't find the package mechanical information in Datasheet. For now, I'm using the LQFP-144 form the STM32H573ZIT3Q part number. Will it be okay? Can you please help to verify it?



Attaching the below Screenshots,

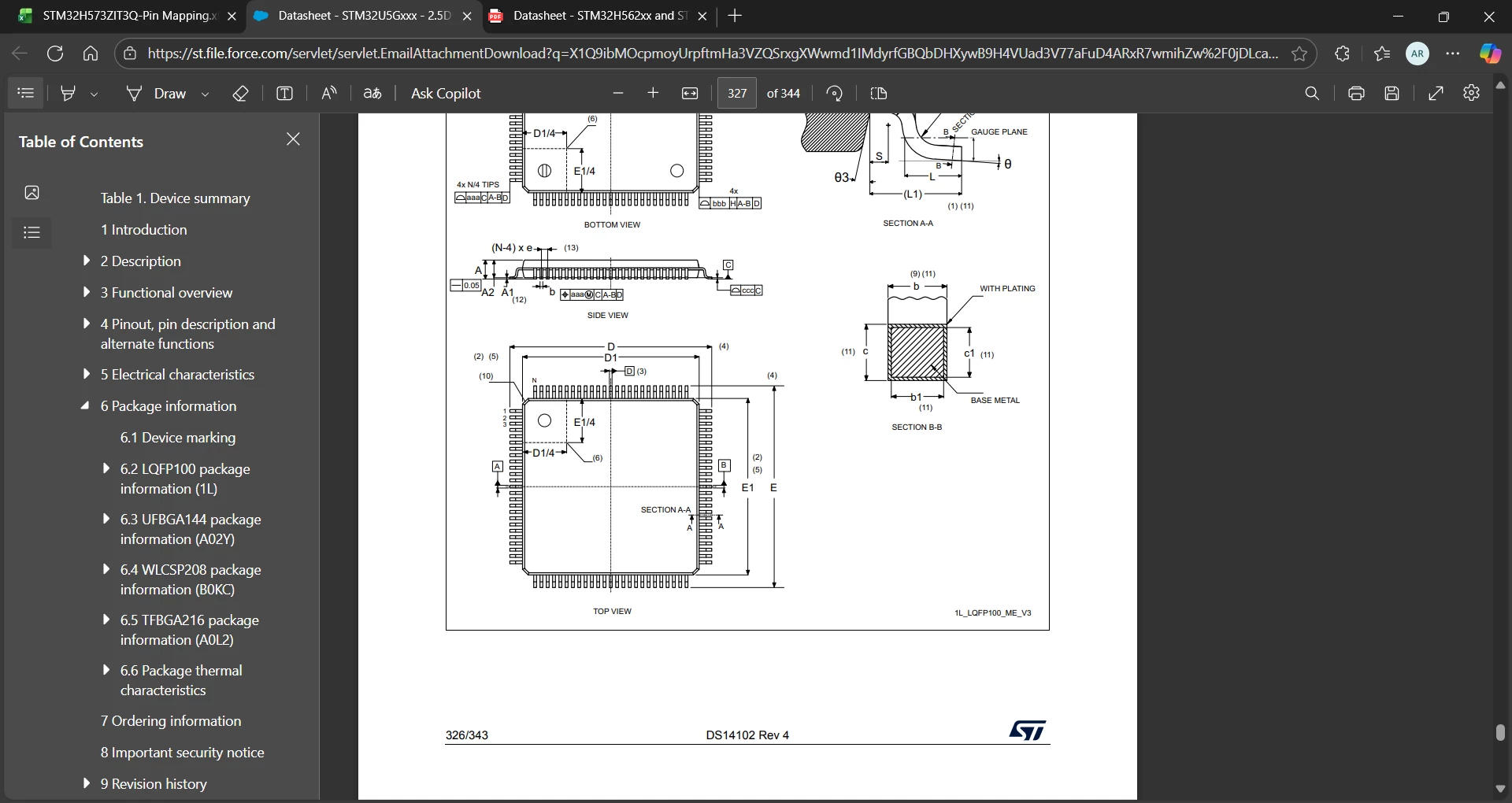

Screenshot from the STM32U5 Datasheet. Not having the LQFP-144 details.

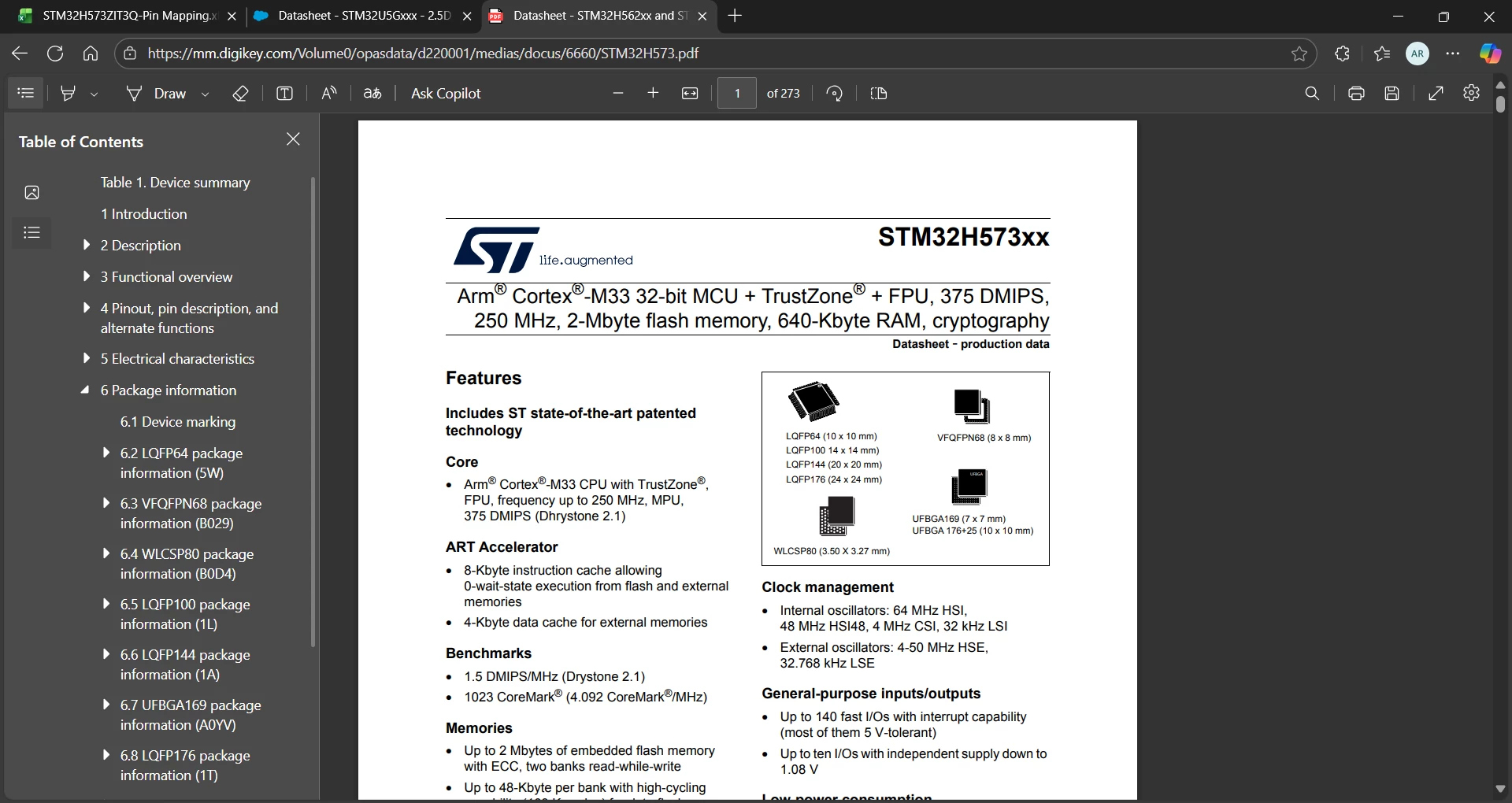

Screenshot from the STM32H5 Datasheet. Having the LQFP-144 details

[TDK]



LQFP144 is missing from the datasheet, but it will be physically identical to any other STM32 LQFP144 mechanical dimensions. Using the H5 sheet for those is fine.

[Ayyanar_Raja]

Hi, It would be better if details added in Datasheet.

[Chris21]

I think we would all agree, this information should be in the Datasheet.

[Imen.D]

Hello All,

Thank you for having reported this.

I forwarded this request internally to the appropriate team for review and to take the necessary action (through Internal ticket number CDM0060486)
(PS: CDM0060486 is an internal tracking number and is not accessible or usable by customers).
