What are the USB D+ and USB D- pins on STM32H7R3V8H6

  • February 17, 2026
  • 3 replies
  • 217 views

Hi

I am drawing a PCBA with STM32H7R3V8H6 but for the USB HS interface PHY its not clear which pins are USB differential D+ and D- data pins?

kr

Øystein

3 replies

Andrew Neil
Andrew NeilBest answer
Super User
February 17, 2026

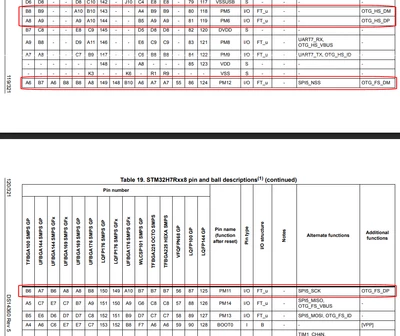

It's in the Datasheet:


https://www.st.com/resource/en/datasheet/stm32h7r3v8.pdf#page=119

via: https://www.st.com/en/microcontrollers-microprocessors/stm32h7r3v8.html#documentation

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
G
Gyessine
Technical Moderator
February 17, 2026

Hello @oysteikr
As @Andrew Neil said and Based on the datasheet.

OTG_HS_DM is located at the PM5 pin, and OTG_HS_DP is located at the PM6 pin.
BR
Gyessine

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
mƎALLEm
mƎALLEm
Technical Moderator
February 18, 2026

Hello @oysteikr ,

If one of the posts above has answered your question, please accept it as solution.

Thank you.

"To give better visibility on the answered topics, please click on ""Accept as Solution"" on the reply which solved your issue or answered your question."
