What is keeping me from enabling the RTC clock?

  • July 20, 2025
  • 2 replies
  • 412 views

I want to the RTC to my project, but something is preventing the RTC clock from being enabled and I can't figure out what it is. IOC file is attached.

Best answer by jlthompson

I seem to have fixed it myself. I reset the RCC configuration using the Reset Configuration button, enabled the RCC global interrupt, and changed to the Clock Configuration. I now got the pop-up dialog asking whether I wanted to allow clock issues to be resolved, which I did. I used the Resolve Clock Issue button and voila!, the RTC clock was enabled. SYSCLK was reduced to 32 MHz, but I might be able to live with that. After a successful test, I turned off the RCC global interrupt and the build continued to work.

Seems like a missed opportunity to inform the developer.

2 replies

mbarg.1
Senior III
July 21, 2025

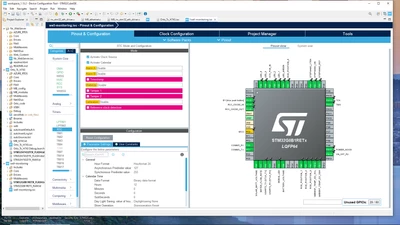

I just created a new project from your .ioc and RTC is enabled !




Please mark as solved if you agree problem is solved.

Senior
July 21, 2025

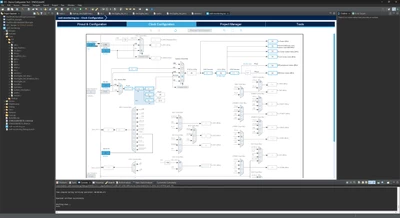

Then why is it grayed out in the Clock Configuration view?




Senior
July 23, 2025

How can I fix my configuration so that the RTC clock is enabled without breaking my project?
