Why can't I activate the SPI1 clock register on stm32f302r8t6?

[Streamer]

I write drive layer in MCU which is stm32f302r8t6. But I can't active to enable SPI clock register.

Can you help me with that problem?

Maybe you ask me that write in main.c as register level.



RCC->APB2ENR |= 0x0800;

Actually I opened SFR and tried to enable SPI clock register but I can't.





[STTwo-32]

Hello @Streamer

To activate the SP1 clock register, you have to write:

RCC->APB2ENR |= 0x1000;

since the SPI1EN is the bit number 12.



Best Regards.

STTwo-32

[Streamer]

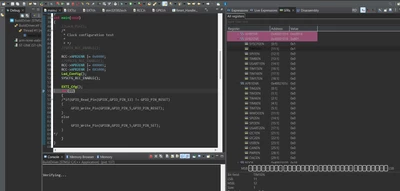

I did write 0x1000. But it is not change. if you look picture you can see what I made

[Streamer]



[Streamer]

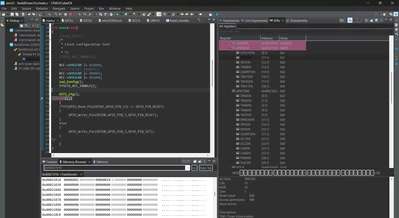

If you look picture. SPI2 and SPI3 is enable but SPI1 isn't still enabled. maybe it has protect? or it is not true hardware





[STTwo-32]

Sorry for this mistake. the SPI1EN is available only on the STM32F302xB/C devices only (According to the RM0365:(

So, SPI1 is not available for the stm32f302r8t6 (only SPI2 and 3).

Best Regards.

STTwo-32

[Streamer]

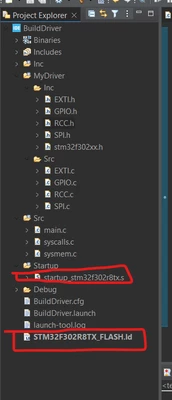

Thank you very much. I only want you remove SFR segment.

How will be it? What do u think with that?

Because my select is stm32f302r8t6
