A problem in Building SBSFU projects

[Roshan]

I went through the MOOC part 6 and I thought of creating a new project for Nucleo -L476RG (from the scratch), I Created a new code using CubeMX (Use same pins ands USART) and followed the same steps as video 2,4 as describes. but once I use FLASH_SBSFU.xxxxxxx .bat it will end less than 1s and .sfb file is not generating. All the paths also created in the .bat file. Please can anyone help me

[Eugene G]

I tripped up a lot on this part as well.

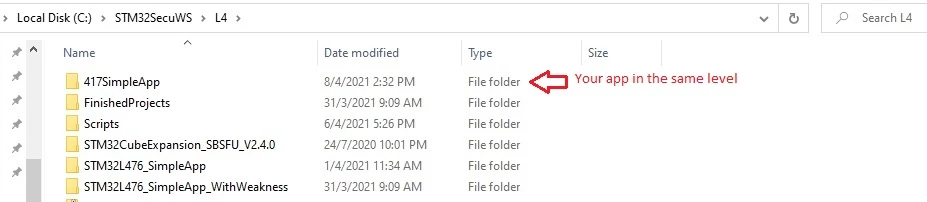

Importantly, follow the project paths exactly as in the MOOC. The create your own project in the L4 folder, attachment shows where I created my own version of SimpleApp. Edit the batch files to point to your own project. I found that if my batch file paths or filenames were wrong, they would not run properly.

By working this way, I managed to get things working in a similar method as in the video.

For erasing and programming the device, I did not use the batch files. I used cube programmer and did a full chip erase and programmed the .bin file. Subsequent updates could be done with the .sfb file via the UART.

I only use the PostbuildSimpleApp batch file (Edited to point to my project) to create the .bin & .sfb file prior to programming.

[Roshan]

Thanks it worked.

[Roshan]

@Eugene G​  I have Some problems, the .bin file is large in size and once I loaded the project into Cube programmer it will give "Operation exceeds memory limits" so did you receive this kind of problem?

[Eugene G]

You need to optimize your project for size and trim off any code that is not needed for your release version. In mine I removed all the printf that I used for debug messages. Project became 2/3 the size.

[Roshan]

@Eugene G​ Thanks, have you ported the sbsfu code to the custom board, if you have can you please tell me where did you change the button configuration. I changed app_hw and main.h configurations but it keep restart and ask me to upload the .sfb file from the ymodem protocol.
