after change the RDP of FLASH from lv0 to lv1, the target could not be detected on NUCLEO-C031C6

[bvd]

hello:

as mentions on title,

my target board is NUCLEO-C031C6. and I change the read protection level of flash from 0 to 1(0xAA to 0xBB) by STM32CubeProgrammer.

after that, the target board can not be connect any more.(keil c/ cubeMX/ cubeProgrammer/ ST-Link Utility...)

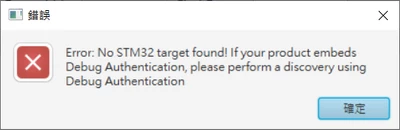

the error message is as below:



I have read related issues on forums and tried some methods from forum, ...like change [reset mode], [mode], or hold reset button and release followed by click [connect]...!

however that doesn't seem to be helpful for my situation.

any other advice will be very appreciate,

thanks~



[Simon.T]

Hello @bvd ,



Normally on RDP level 1 the debug port should be available. However do you know if you configure other option byte like boot_lock ?



BR,



Simon

[bvd]

hello Simon:

thanks so much for replying.

about "However do you know if you configure other option byte like boot_lock ?"...maybe!

I just selected [0xBB](level_1) and then click [APPLY]...on STM32CubeProgrammer.

after reconnect power, the board can not be connect any more as previous mention...

I can not check the values of register without connecting...

is there any way to recover ?

thanks very much!!



[Simon.T]

Hello @bvd ,



I'm asking this detail, because if you put RDP level 1 and boot_lock in the same time, the debug capability will be disabled and the device locked.

Can you try to connect the product through the Cube Programmer power down option ?:

Best regards,



Simon



[FArdi.1]

I found this thread by searching. Is there any way to recover the board?

I wrote BOOT_LOCK and RDP level1 at same time. Now I'm unable to connect to nucleo board.

RM doc mentioned that it's possible to reset it back. But now I can't even connect to it using STM32CubeProgrammer.







[bvd]

hello:

i am sorry, this issue still exists, i can't do anything without connecting the mcu.

[FArdi.1]

Hi @bvd , so sorry the hear that, after so many months without solution



I think ST should be able to duplicate the problem since we're using same NUCLEO-C031C6 board.

Just now I tried on my own PCBA with STM32C031K6. Same thing happen. All possible connection modes tried, but all failed to connect (hot plug/normal/under reset/power down).



Below is the steps. Attached is the logs (using CLI commands):

1. Read option byte ( stm32_programmer_cli -c port=SWD freq=8000 mode=UR -ob displ )
2. Set boot lock ( stm32_programmer_cli -c port=SWD freq=8000 mode=UR -ob BOOT_LOCK=0x1 )
3. Read option byte ( stm32_programmer_cli -c port=SWD freq=8000 mode=UR -ob displ )
4. Set RPD to level 1 ( stm32_programmer_cli -c port=SWD freq=8000 mode=UR -ob RDP=0xBB ) --------------->>>>>>>>>>> FAILED
5. Read option byte ( stm32_programmer_cli -c port=SWD freq=8000 mode=UR -ob displ )



[Simon.T]

Hello,



To lose debug capability when the RDP level 1 is set in association of BOOT_LOCK is the normal behavior.

This behavior is described in the FLASH security register (FLASH_SECR) page 78 via a caution note:

After setting RDP level 1 and boot lock, re-enabling of debug capabilities is possible only by setting the DBG_SWEN bit by the application code.



Best regards,



Simon



[FArdi.1]

This means my boards are unrecoverable because I never prepare to access DBG_SWEN register in my application.

I'm expecting this information to be mentioned near the BOOT_LOCK .



My understanding of "debug capability disable" was unable to debug during runtime, but should always be able to connect under reset. But that's not the case.







[Jocelyn RICARD]

Hello @FArdi.1 ,

I'm sorry that you bricked your board. I agree the RM should add a warning about this. I will ask for it.

This BOOT_LOCK mechanism is an improvement of the security achieved while staying in RDP Level1.

Best regards

Jocelyn
