Option bytes in STM32F207

  • January 8, 2024
  • 1 reply
  • 1089 views

Hi

It stated in PM0059 page 16:  The value of an option is automatically modified by first erasing the user configuration sector and then programming all the option bytes with the values contained in the FLASH_OPTCR register.

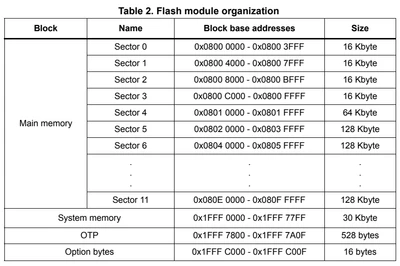

I want to  know : What's the user configuration sector? Can you help to point to the right ones in the following table?




This topic has been closed for replies.
Best answer by TDK

The option bytes and the user configuration sector are one and the same.

I guess technically the option bytes are within the user configuration sector. But that's the only thing in there. They refer to the same location in flash.

1 reply

TDK
TDKBest answer
Super User
January 8, 2024

The option bytes and the user configuration sector are one and the same.

I guess technically the option bytes are within the user configuration sector. But that's the only thing in there. They refer to the same location in flash.
