SBSFU installation issue

[Meenakshi]



Hi,

I'm using F4 series board (STM32F423ZHT6). also I'm using F4 and scripts say L series - are they compatable?

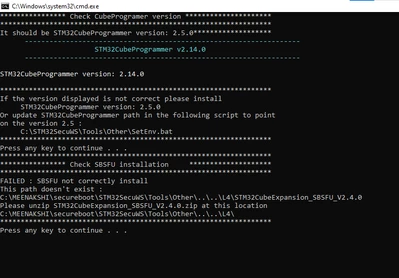

STM32CubeProgrammer version: STM32CubeProgrammer 2.14.0 - This is support SBSFU

X-CUBE-SBSFU version: 2.6.2

I follow the https://www.youtube.com/playlist?list=PLnMKNibPkDnGd7J7fV7tr-4xIBwkNfD-- video.





Can you please help me?







Regards,

Meena









[Jocelyn RICARD]

Hello @Meenakshi ,

please install official version of X-CUBE-SBSFU and start from the project STM32F413H-Discovery.

Please read associated documentation UM2262 and AN5056.

The tools versions used in the video are quite old. So scripts may need to be adapted.

Best regards

Jocelyn
