SBSFU - WRP / RDP Test Failure

[snmunters]

Hi,

I am setting up SBSFU on our STM32H750. I want to test the RDP and WRP security protections.

Steps taken so far:

1. I have enabled WRP and RDP Level 1 by setting the option bytes through cubeprogrammer and enabling SFU_WRP_PROTECT_ENABLE & SFU_RDP_PROTECT_ENABLE in app_sfu.h
2. I have enabled SFU_TEST_PROTECTION in app_sfu.h



Note:
There are several test cases in sfu_test.c that I am using. The tests in questions are attached below:

TEST_ERASE_FLASH is failing.

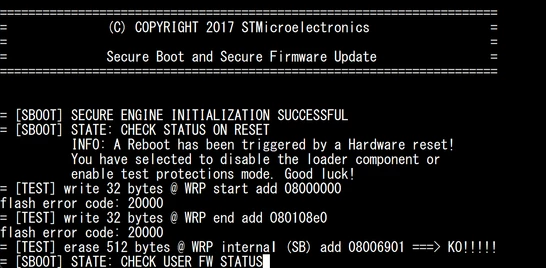

Output:

I am not sure why this would be. Does anyone have any advice?



[snmunters]

Update:

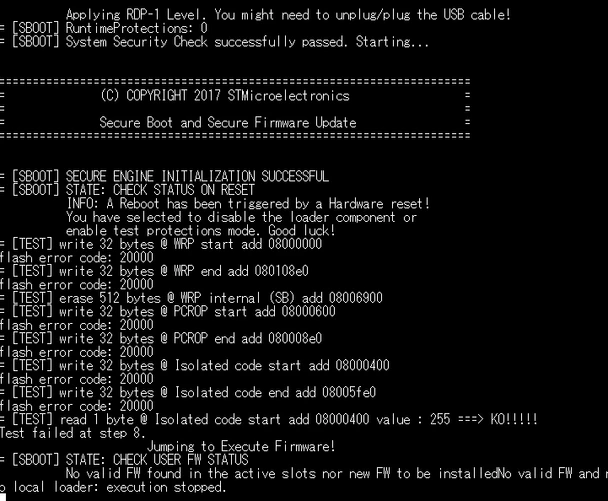

TEST_WRITE_FLASH and TEST_ERASE_FLASH are now working. However, TEST_READ_FLASH is consistently failing. I believe WRP is working but RDP is not.





[snmunters]

Fixed. This was a misunderstanding on my part.

RDP protects against external attack while this test suite attempts invalid access internally.

Enabling the MPU protections (SFU_MPU_PROTECT_ENABLE ) triggers a reset on each invalid read/write which is what should happen.
