STM32H735AGI6 RNG non working

[mzenn.280]

the function MX_RNG_Init fails

HAL_RNG_Init returns t.o.:

 while (HAL_IS_BIT_SET(hrng->Instance->CR, RNG_CR_CONDRST))

 {

  if ((HAL_GetTick() - tickstart) > RNG_TIMEOUT_VALUE)

  {

   /* New check to avoid false timeout detection in case of preemption */

   if (HAL_IS_BIT_SET(hrng->Instance->CR, RNG_CR_CONDRST))

   {

    hrng->State = HAL_RNG_STATE_READY;

    hrng->ErrorCode = HAL_RNG_ERROR_TIMEOUT;

    return HAL_ERROR;

   }

  }

 }

[Tesla DeLorean]

Does it need a PLL/CLK running? Are all the registers in the RND, HASH, CRYP zero? Do the clock enables stick low?

[mzenn.280]

I am using the code genereted by cubemx:

int main(void)

{

  HAL_Init() ;

  SystemClock_Config() ;

  PeriphCommonClock_Config() ;

....

MX_RNG_Init() ;

...

I think that pll and clock are running

The funnction HAL_RNG_MspInit enables HSI48, so also this clock should be ok

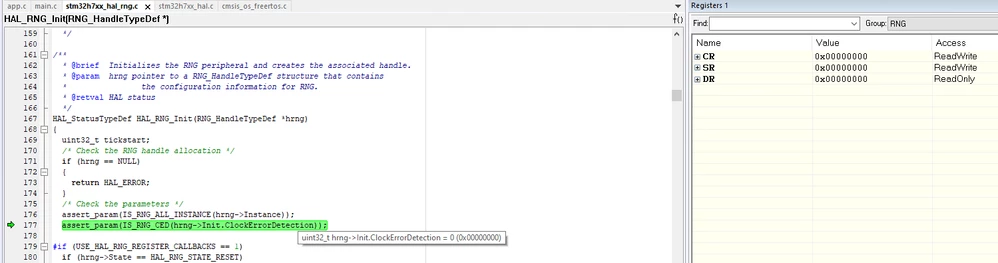

Beginning:

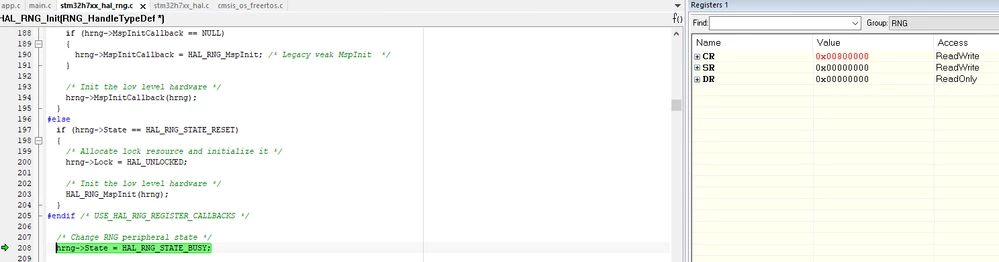

after msp init:

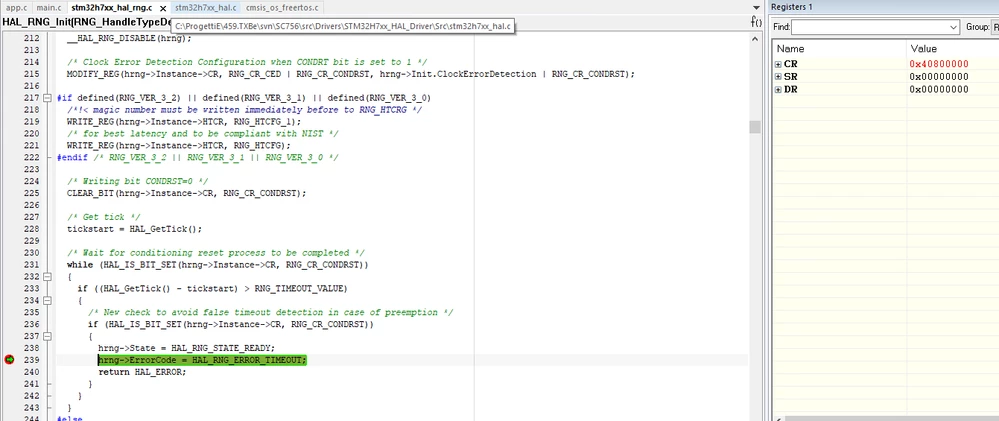

here the error:

[Tesla DeLorean]

Try other examples..

STM32Cube_FW_H7_V1.10.0\Projects\STM32H735G-DK\Examples\RNG\RNG_MultiRNG\Src\stm32h7xx_hal_msp.c

/**
 * @brief RNG MSP Initialization
 * This function configures the hardware resources used in this example:
 * - Peripheral's clock enable
 * @param hrng: RNG handle pointer
 * @retval None
 */
void HAL_RNG_MspInit(RNG_HandleTypeDef *hrng)
{
 RCC_OscInitTypeDef RCC_OscInitStruct = {0};
 RCC_PeriphCLKInitTypeDef PeriphClkInitStruct = {0};

 RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSI48;
 RCC_OscInitStruct.PLL.PLLState= RCC_PLL_NONE;
 RCC_OscInitStruct.HSI48State = RCC_HSI48_ON;
 if (HAL_RCC_OscConfig(&RCC_OscInitStruct))
 {
 /* Initialization Error */
 while(1);
 }
 /*Select HSI48 output as RNG clock source */
 PeriphClkInitStruct.PeriphClockSelection = RCC_PERIPHCLK_RNG;
 PeriphClkInitStruct.RngClockSelection = RCC_RNGCLKSOURCE_HSI48;
 if (HAL_RCCEx_PeriphCLKConfig(&PeriphClkInitStruct))
 {
 /* Initialization Error */
 while(1);
 }

 /* RNG Peripheral clock enable */
 __HAL_RCC_RNG_CLK_ENABLE();
}
