stm32H743 SBSFU Can be done through CAN Protocol ?

[Devank_J]

Hi All,

I am new to SBSFU. I have gone through x-cube-sbfu getting started document in that document provide for UART- based example. can it be implemented with FD/CAN Protocol.

Regards,

Devank_J

[mƎALLEm]

Hello,

Same question here.

[CMYL]

Hello @Devank_J



Sorry for the delay.

A ticket is submitted internally to provide either example of guidelines how to support CAN.

Ticket number (Ticket 202646: stm32H743 SBSFU through CAN Protocol guidelines ?) (This is an internal support Ticket for Tracking not usefull for you)

Best regards

[CMYL]

Hello @Devank_J



According to information I get from technical expert, it is possible to use the X-CUBE-SBSFU solution with CAN interface. This will consist in replacing the UART YMODEM solution by a CAN solution.

Unfortunately, only the UART YMODEM solution is available and no demo planned to support other interfaces in short-term.

Here are the files which may be impacted in order to change from UART to CAN:

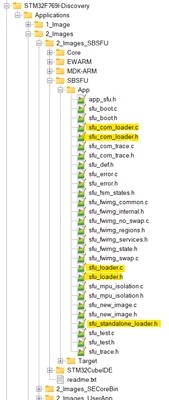

At SBSFU (local loader) :

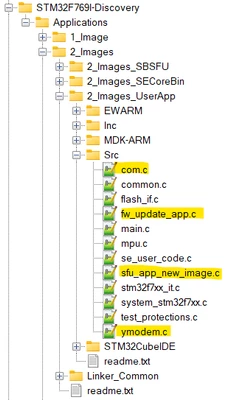

Or at UserApp level:









Or at the « standalone loader » level when it is used :







Best regards,

Younes
