Warning in HAL CRC since updating to F0 Cube v1.11.3

[MattKefford]

The clear_bit macro in the CMSIS driver is causing a warning when used in the function HAL_CRC_DeInit:

[Andrew Neil]

No doubt the code has always had that "issue", but the default warning level has changed - so now you see the warning.

The thing in square brackets at the end is the option to disable this warning:



Also, googling "Woverflow" will get you to documentation of exactly what that warning's all about.

It's generally better to copy & paste as text rather than an image

[MattKefford]

Thanks for the reply Andrew!

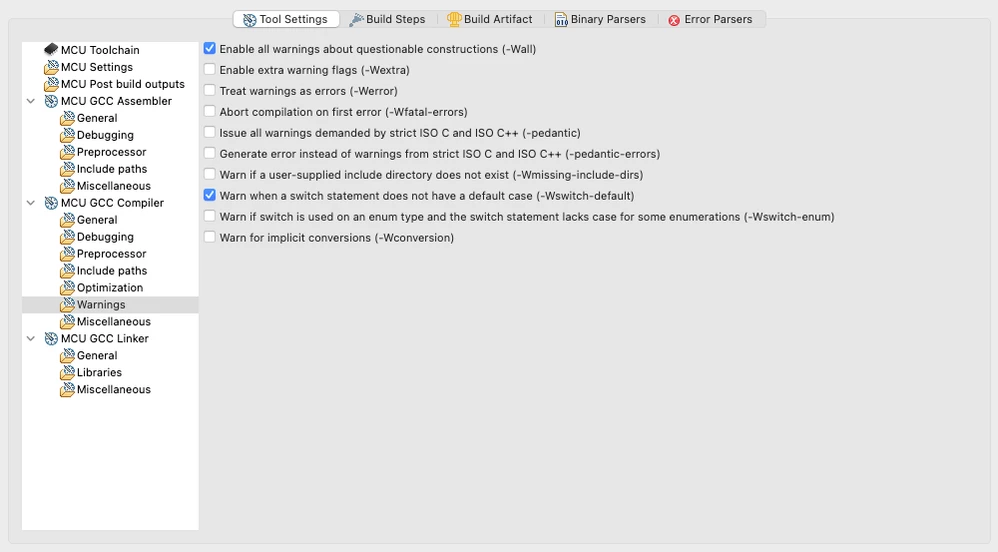

I have had a look at my project settings and there's no option to turn -Woverflow on or off:

I could deselect -Wall in this settings window but I would like to know about warnings really. If it's something in my code that could cause a bug.

So it seems I would have to add the pre-processor instructions:

#pragma GCC diagnostic push

#pragma GCC diagnostic ignored "-Woverflow"

// ... offending code here ...

#pragma GCC diagnostic pop

But I can't add this as it's in the HAL code and will be overwritten/removed next time I generate the project with CubeMX.

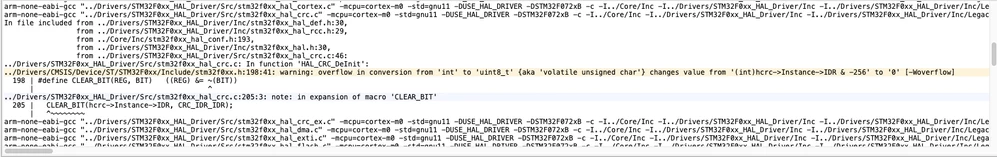

Here's the text from the screenshot if any ST people need it:

../Drivers/STM32F0xx_HAL_Driver/Src/stm32f0xx_hal_crc.c: In function 'HAL_CRC_DeInit':

../Drivers/CMSIS/Device/ST/STM32F0xx/Include/stm32f0xx.h:198:41: warning: overflow in conversion from 'int' to 'uint8_t' {aka 'volatile unsigned char'} changes value from '(int)hcrc->Instance->IDR & -256' to '0' [-Woverflow]

 198 | #define CLEAR_BIT(REG, BIT)  ((REG) &= ~(BIT))

   |                     ^

../Drivers/STM32F0xx_HAL_Driver/Src/stm32f0xx_hal_crc.c:205:3: note: in expansion of macro 'CLEAR_BIT'

 205 |  CLEAR_BIT(hcrc->Instance->IDR, CRC_IDR_IDR);

   |  ^~~~~~~~~

[Tesla DeLorean]

There's perhaps a command line level option to allow more carte-blanche feed-thru to the compiler where the tools don't individually check-box all combinations of available settings?
