Question

WRITE_REG macro not working

  • November 11, 2022
  • 1 reply
  • 1200 views

I'm currently trying to use the CRC peripheral on an STM32G474, and when running HAL_CRC_Calculate(), the computed checksum is always zero. Doing some debugging into the HAL_CRC_Init() function, I've found that when the WRITE_REG macro is called, nothing happens.

Here's an example:

Before calling WRITE_REG, hcrc->Instance->POL = 0.

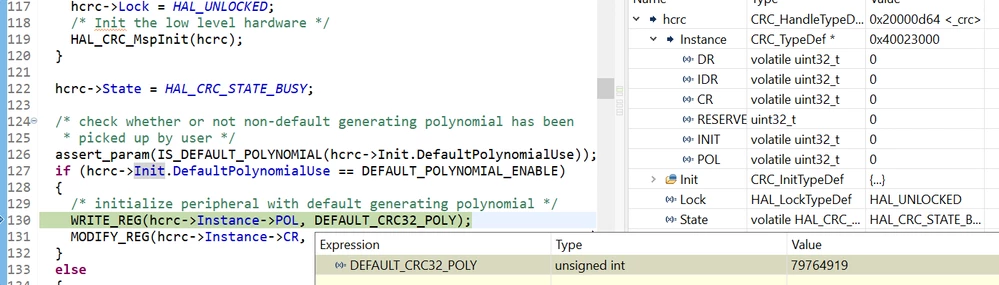

0693W00000WI9NhQAL.pngAfter executing this line, the value should be 79764919, but:

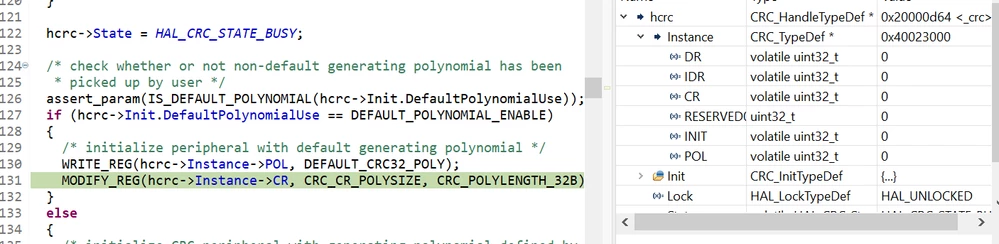

0693W00000WI9PEQA1.png hcrc->Instance->POL is clearly still 0.

This topic has been closed for replies.

1 reply

TDK
Super User
November 11, 2022

The CRC clock need enabled before you can use the peripheral.

__HAL_RCC_CRC_CLK_ENABLE();
