Cannot add USART2 initialization through CubeMX to the main program when using TouchGFX

[ChungEN]

I'm using RVT101HVSNWC00-B.I use TouchGFX 4.24.0 to generate initial code.

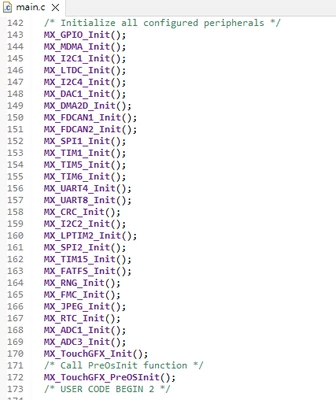

There's no MX_USART2_UART_Init(); , even though I generate code again through CubeMX.

I have to add it by myself to initial USART2.



[STTwo-32]

Hello @ChungEN

If possible, can you add you .ioc file?

Best Regards.

STTwo-32

[ChungEN]

Here's the .ioc file.

Best Regards,

ChungEn

[STTwo-32]

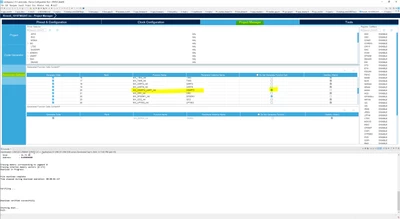

To generate the "MX_USART2_UART_Init();" function, you have to go to your .ioc file->Project Manager->Advanced Settings and unselect the "Do Not Generate Function Call" For the Peripheral Instance Name "USART2".

Best Regards.

STTwo-32
