FlexButton background color how to change in code

[Hab Collector]

I googled how to make this change.  I found several references to class members setBackgroundColor, setButtonColor, setBoxColor but none of them work (are members).  I checked BoxWithBorderButtonStyle.hpp and could find no reference to any of these nor any (obvious) function that would allow me to change the color.  The documentation that I can find online does not match my results.  Any feedback would be helpful.  I am using TouchGFX 4.24.2

[mƎALLEm]

Hello,

I think you need to use:



 /**
 * Sets the colors.
 *
 * colorReleased The color released.
 * colorPressed The color pressed.
 * borderColorReleased The border color released.
 * borderColorPressed The border color pressed.
 */
 void setBoxWithBorderColors(const colortype colorReleased, const colortype colorPressed, const colortype borderColorReleased, const colortype borderColorPressed)
 {
 up = colorReleased;
 down = colorPressed;

 borderUp = borderColorReleased;
 borderDown = borderColorPressed;

 handlePressedUpdated();
 }



Tip: how did I find it?

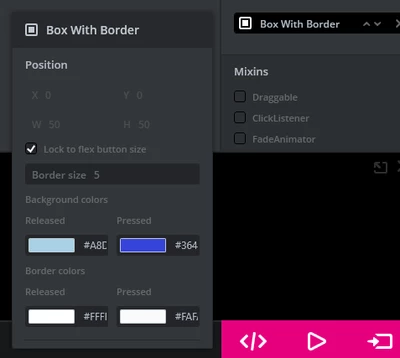

Create a flex button and change the background colors.

Go to the ScreenXXXViewBase in "generated" folder and check what was the call corresponding to the color settings:



flexButton1.setBoxWithBorderColors(touchgfx::Color::getColorFromRGB(168, 209, 230), touchgfx::Color::getColorFromRGB(54, 68, 217), touchgfx::Color::getColorFromRGB(255, 255, 255), touchgfx::Color::getColorFromRGB(250, 250, 250));



The two first parameters correspond to the pressed/released background colors.

Hope that helps.

[Hab Collector]

Thank you so much - that was most helpful.
