Gfx 4.24.1, warning in CWRUtil::toQ5(T) [with T = float]

[ferro]

Dear Gfx Team,

CWRUtil::toQ5 causes Cube compiler giving this warning

c:\TouchGFX\4.24.1\touchgfx\framework\include\touchgfx\widgets\canvas\CWRUtil.hpp



../touchgfx/widgets/canvas/CWRUtil.hpp: In instantiation of 'static touchgfx::CWRUtil::Q5 touchgfx::CWRUtil::toQ5(T) [with T = float]':
../touchgfx/widgets/canvas/Canvas.hpp:120:36: required from here
../touchgfx/widgets/canvas/CWRUtil.hpp:518:31: warning: arithmetic between floating-point type 'float' and enumeration type 'touchgfx::Rasterizer::<unnamed enum>' is deprecated [-Wdeprecated-enum-float-conversion]

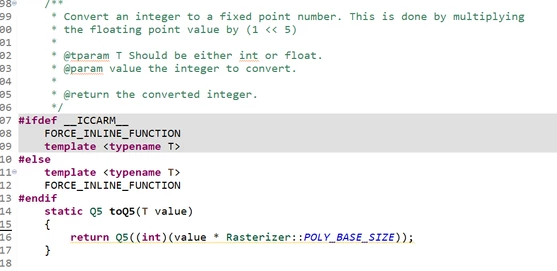

 518 | return Q5((int)(value * Rasterizer::POLY_BASE_SIZE));
 | ~~~~~~~^~~~~~~~~~~~~~~~~~~~~~~~~~~~~





Could you possibly cast Rasterizer::POLY_BASE_SIZE to the static_cast<T> :



static Q5 toQ5(T value)
{
 return Q5(static_cast<int>(value * static_cast<T>(Rasterizer::POLY_BASE_SIZE)));
}







What do you think ?



[GaetanGodart]

Hello @ferro ,



Thank you for your feedback!
I will report it to the team and I will keep you updated.

I am personally unaware of this function, can you tell me in which file it is located?



Regards,

[ferro]

Hi @GaetanGodart

"can you tell me in which file it is located?"

c:\TouchGFX\4.24.1\touchgfx\framework\include\touchgfx\widgets\canvas\CWRUtil.hpp



[GaetanGodart]

Thank you @ferro !

[GaetanGodart]

Hello @ferro ,



It seems we have implemented the change.
It should be available now or in the next release coming soon.



Regards,

[ferro]

Lovely. MSVC C++17 does not complain but MSVC and CubeIDE C++20 does so nice its sorted @GaetanGodart .
