Help with Slide Menu

[always_energized]

Hi there,

I'm new to STM32 and was successful to setup a 800x480 LCD with a STM32H743 and SDRAM as Framebuffer.

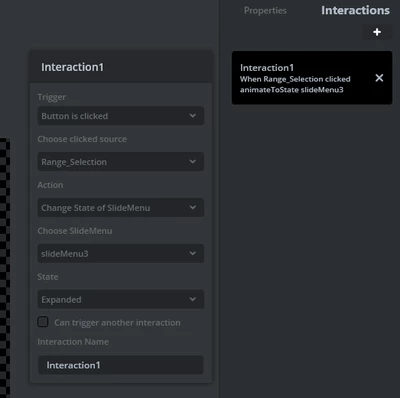

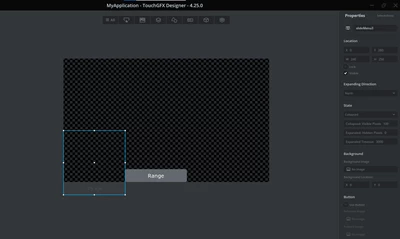

Now I'm stuck with desiging the GUI with TouchGFX. I would like to add the Slide Menu Option to my screen, however when I press on the assigned button nothing happens in the simulator. I looked at the Slide Menu example but I can't see a difference to my setup. Could someone also have a look at my configuration?









[MM..1]

Seems cant work without background image defined...

[always_energized]

Thanks for the Input, now the defined background slides in, however the buttons don't appear. It seems they are covered by the background?

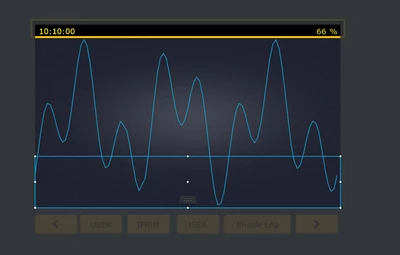

My configuration now looks like this:





I marked the slide Menu with my cursor.

Any help would be appreciated.

[GaetanGodart]

Hello @always_energized ,



Can you please share your full project as a 7z file (zipped file)?



Regards,
