How do I integrate what was created in TOUCH GFX DESIGNER into the IDE?

[Emanuele78]

I developed firmware with CUBE IDE and then set up the 2.4" TFT LCD screen with buttons, etc., using TOUCH GFX DESIGNER. How do I import what I developed in TOUCH GFX into CUBE IDE?

[GaetanGodart]

Hello @Emanuele78 ,



Once you have created you desired GUI, simply click on "Generate code" on the bottom right corner:

Then you can simply open the folder of your project on the bottom left:

Finally, open your STM32CubeIDE project in the STM32CubeIDE project.



Also, you can look at this video : How to TouchGFX: Creating my first GUI with TouchGFX Designer for STM32 GUI applications



Hope this help! :smiling_face_with_smiling_eyes:
If this answers your question, I invite you to select this comment as "best answer".



Regards,

[Emanuele78]

Thank you, I managed to import the file created in TouchGFX into the IDE. Now, for the next step, how do I integrate it into the IDE firmware I've already written? How should I proceed? Which folders do I need to copy from the TouchGFX file to the IDE?

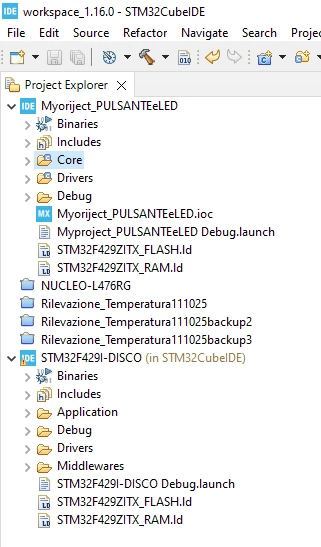

In the attached screenshot, you can see the two projects open. Thanks again.

[Karl Yamashita]

To many files. folders and adding paths to deal with. You're better off copying your files from the other project into the TouchGFX project.

[Emanuele78]

I did as instructed, but I’m getting errors. The IDE indicates that some definitions are not recognized within the main.c file. However, the definitions are present in main.h, and main.c includes main.h. What could be causing this error? Thank you.

[Karl Yamashita]

You drag and drop the main.h file onto the TouchGFX project tree?

[Emanuele78]

Yes, but I copied and pasted

[Karl Yamashita]

You can't drag/drop, or copy/paste onto the project tree. You have to use Window Explorer and paste in the Core folder src and inc respectfully like i said to do with the other files.

You've copy/paste the main.h into i believe STM32CubeIDE\Application\User directory which the compiler doesn't see even though you can see it in the project tree. You can see that your main.h doesn't have the link icon like the other files do.

Follow my directions about importing/linking files, which you can do with the original main.h file. Then double click the main.h file to open it, copy what code/defines that you need from the first main.h into the TouchGFX main.h.
